Switchcraft

250

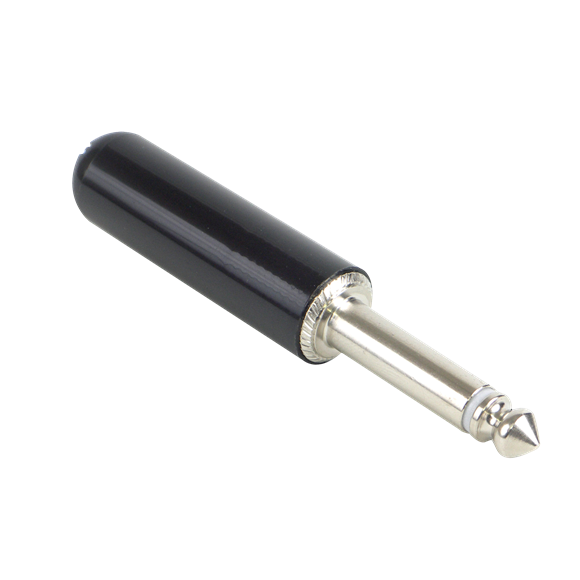

1/4" Mono 2 Conductor Cable Mount Plug, Black Plastic w/Solder Lug & Cable Clamp

In stock
Drawings:


Buy Now

View More From This Family

Configuration

  • Number of Conductors: 2
  • Product Line: Littel Plugs
  • Mounting Type: Cord
  • Termination Style: Solder
  • Contact Plating: Nickel
  • Color: Black
  • Sealed: Not Sealed
  • Handle Material: Thermoplastic
  • Packaging Type: Assembled
  • Standard Connector Type: 1/4" Phone Jacks & Plugs
  • Jack-Plug Type: Plug

Electrical

  • Contact Resistance: 0.03 Ohms
  • Dielectric Withstanding Voltage: 500 Volts
  • Insulation Resistance: 10000 MOhms
  • Current Rating: 1 Amps

Mechanical

  • Life Cycle: 10000 Cycles
  • Operating Force: 7 lbs

Environmental

  • Shielding: Unshielded
  • Maxiumum Temperature: 85 C

Compliance

  • RoHS Compliant: Compliant
  • REACH Compliant: Compliant
  • Brand: Switchcraft

Dimensional

  • Cable Opening: 0.296 in

Material

  • Body Material: Copper Alloy
  • Body Plating: Nickel
  • Contact Plating Type: Nickel
  • Terminal Material: Copper Alloy Tinnned
