Switchcraft

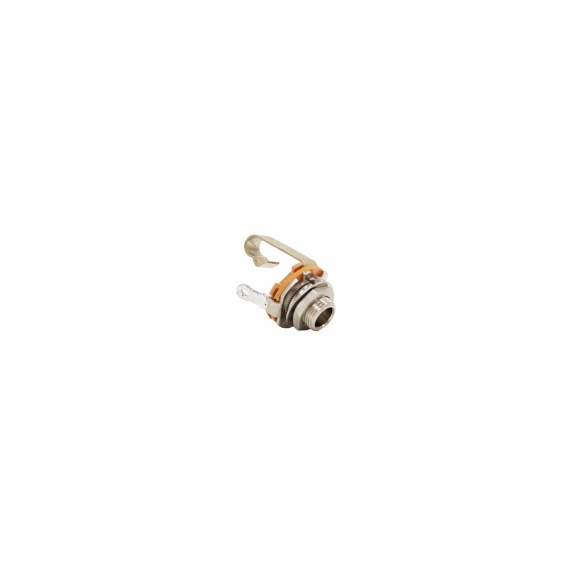

C11X

1/4" Open Frame Jack, 2-Conductor, MIL Number M641/6-1

In stock
Drawings:


Buy Now

View More From This Family

Configuration

  • Number of Conductors: 2
  • Mounting Type: Panel
  • Mounting Feature: Open Frame
  • Termination Style: Solder
  • Contact Plating: Nickel
  • Packaging Type: Bulk
  • Number of Stations: 1
  • Standard Connector Type: MIL-Type Jacks & Plugs
  • Jack-Plug Type: Jack

Electrical

  • Contact Resistance: 0.03 Ohms
  • Insulation Resistance: 10000 MOhms
  • Current Rating: 1 Amps
  • Circuit-Schematic: Single Open

Mechanical

  • Life Cycle: 10000 Cycles

Environmental

  • Humidity Rating: MIL-STD-202 Method 106
  • Moisture Resistance: MIL-STD-202 Method 106
  • Salt Spray: MIL-STD-202 Method 101
  • Mechanical Shock: MIL-STD-202 Method 213 Test Cond H
  • Vibration: MIL-STD-202 Method 213
  • Maxiumum Temperature: 85 C

Certification

  • RoHS Compliant: Compliant
  • REACH Compliant: Compliant
  • Brand: Switchcraft

Material

  • Terminal Material: Copper Alloy
  • Spring Material: Copper Alloy
