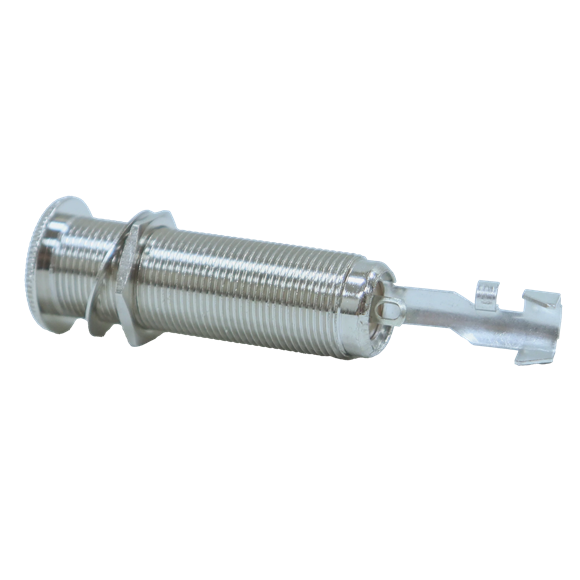

151-2-64db9cf1ea8de
Enlarge
151-2-64db9cf1ea8de
  • There are no alternate images available for this product.

  •
Switchcraft

152B

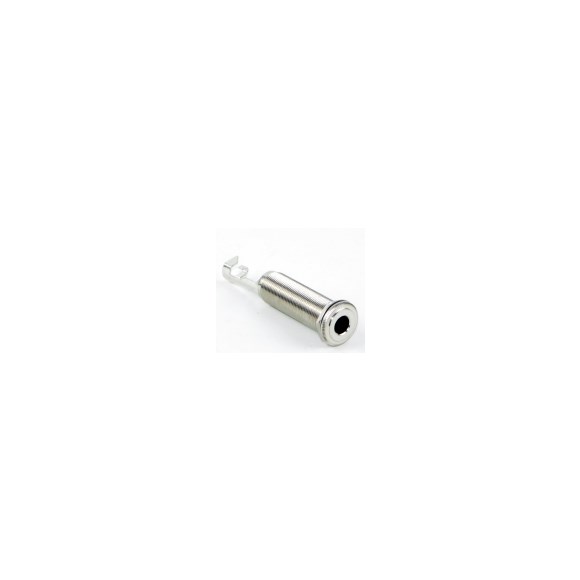

1/4" Stereo 3 Conductor Thick Panel Mount Jack w/Cable Clamp, Brass Finish

In stock
Drawings:


Buy Now

View More From This Family

Configuration

  • Number of Conductors: 3
  • Product Line: Littel Jacks
  • Mounting Type: Panel
  • Termination Style: Solder
  • Contact Plating: Tin
  • Color: Brass
  • Locking: Non-Locking
  • Sealed: Not Sealed
  • Packaging Type: Bulk
  • Standard Connector Type: 1/4" Phone Jacks & Plugs
  • Jack-Plug Type: Jack
  • Special Feature: Thick Panel "End Pin" Jack

Electrical

  • Current Rating: 1 Amps
  • Circuit-Schematic: Double Open

Mechanical

  • Panel Thickness: 1.25 in

Environmental

  • Temperature Range: -55C to +85C
  • Shielding: Unshielded
  • Minimum Temperature: -55 C
  • Maxiumum Temperature: 85 C

Compliance

  • RoHS Compliant: Compliant
  • REACH Compliant: Compliant
  • Brand: Switchcraft

Material

  • Body Material: Copper Alloy
  • Body Plating: Nickel
  • Contact Material: Copper Alloy
  • Insert Material Type: Rigid Plastic Insulating Spacers
  • Terminal Material: Copper Alloy
  • Spring Material: Copper Alloy
  • Sleeve Material: Steel
