1/8" [3.5mm] Plugs

1/8" [3.5mm] Plugs

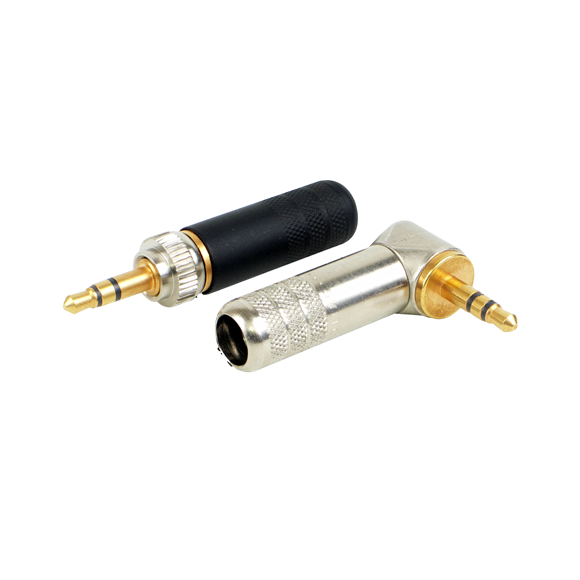

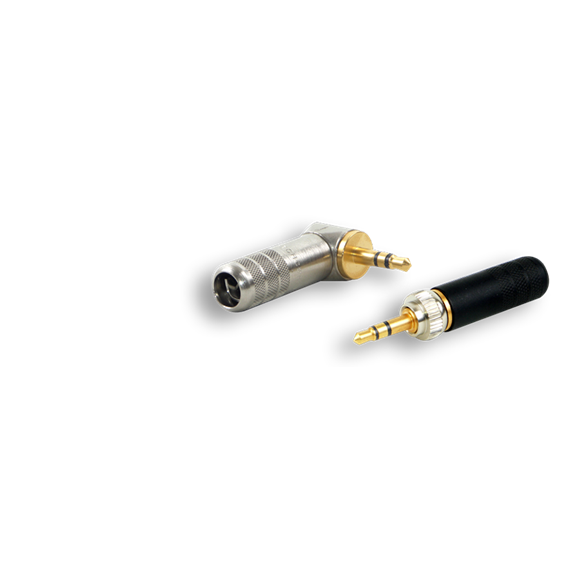

The 35HD series features a wide range of 3.5mm plugs including straight, right angle and locking. All plugs are 1/8" stereo, 3-conductor.




Electrical

  • Contact Resistance: 0.02 Ohms
  • Dielectric Withstanding Voltage: 250 Volts
  • Insulation Resistance: 2000 MOhms
  • Voltage Rating: 250 Volts
  • Current Rating: 4 Amps

Mechanical

  • Life Cycle: 5000 Cycles
  • Operating Force: 2.5 lbs

Environmental

  • Mechanical Shock: MIL-STD-202F Method 107G
  • Vibration: MIL-STD-202 Method 201

Certification

  • RoHS Compliant: Compliant
  • REACH Compliant: Compliant
  • Brand: Switchcraft

Material

  • Terminal Material: Copper Alloy Tin-Plated
