Switchcraft

MDSL2A

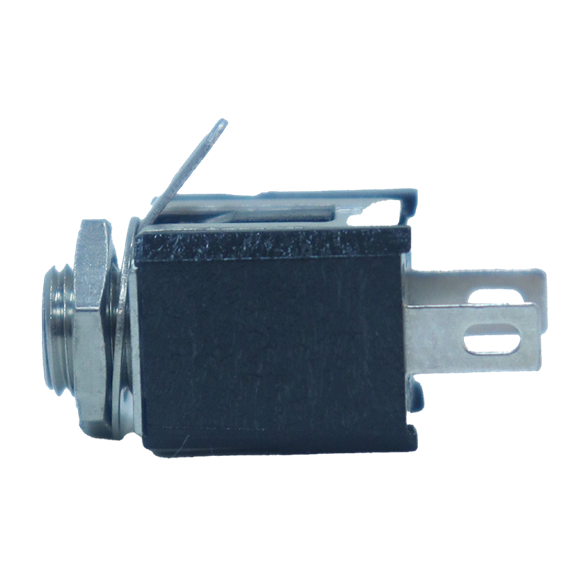

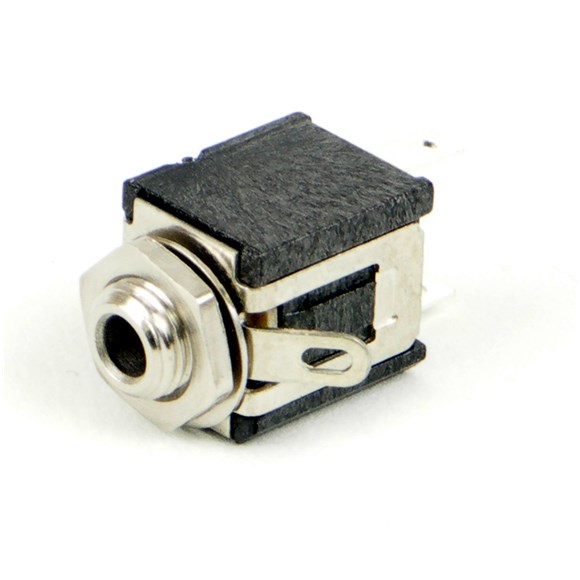

.101" MICRO JACK, 2-conductor closed circuit jack with PC terminals, solder lugs, bushing is #10-48 threaded (nut and washer supplied), mounting centers are .35 inch or .313 inch

In stock
Drawings:


Buy Now

View More From This Family

Configuration

  • Product Line: Micro-Jax
  • Mounting Type: Panel
  • Mounting Feature: Enclosed
  • Termination Style: Solder Cup
  • Locking: Locking
  • Standard Connector Type: 0.101" [2.56mm]
  • Shunt: Shunted

Electrical

  • Contact Resistance: 0.01 Ohms
  • Dielectric Withstanding Voltage: 250 Volts
  • Insulation Resistance: 10000 MOhms
  • Current Rating: 0.125 Amps

Mechanical

  • Life Cycle: 10000 Cycles
  • Operating Force: 0.68 lbs
  • Coupling Locking Style: Bayonet

Environmental

  • Humidity Rating: MIL-STD-202 Method 106
  • Salt Spray: MIL-STD-202 Method 101
  • Mechanical Shock: MIL-STD-202 Method 107
  • Maxiumum Temperature: 85 C

Certification

  • RoHS Compliant: Compliant
  • REACH Compliant: Compliant
  • Brand: Switchcraft

Material

  • Terminal Material: Copper Alloy
  • Spring Material: Copper Alloy
  • Sleeve Material: Copper Alloy
