MPDPC2A
Enlarge
MPDPC2A
  • There are no alternate images available for this product.

  •
Switchcraft

MDPC2A

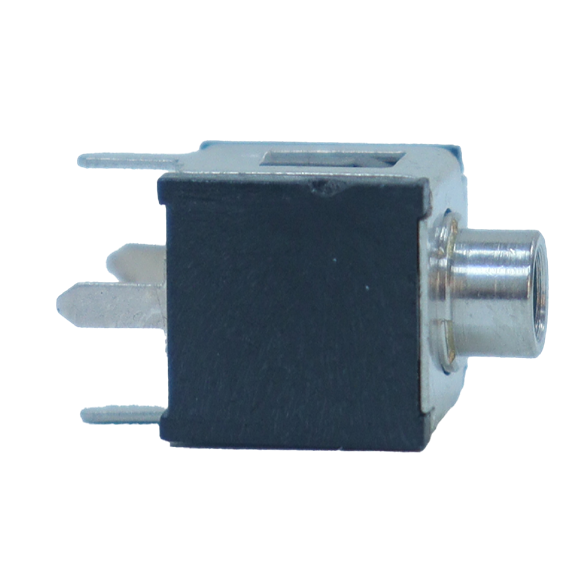

.101" MICRO JACK, 2-conductor closed circuit jack with PC terminals

In stock
Drawings:


Buy Now

View More From This Family

Configuration

  • Number of Conductors: 2
  • Product Line: Micro-Jax
  • Mounting Type: Panel
  • Mounting Feature: Enclosed
  • Termination Style: PC Mount
  • Color: Nickel
  • Locking: Non-Locking
  • Sealed: Not Sealed
  • Insert Material: Rigid Plastic Insulating Spacers
  • Packaging Type: Bulk
  • Standard Connector Type: 0.101" [2.56mm]
  • Shunt: Shunted
  • Jack-Plug Type: Jack

Electrical

  • Contact Resistance: 0.01 Ohms
  • Dielectric Withstanding Voltage: 250 Volts
  • Insulation Resistance: 10000 MOhms
  • Current Rating: 0.125 Amps

Mechanical

  • Life Cycle: 10000 Cycles
  • Operating Force: 0.68 lbs

Environmental

  • Temperature Range: -20C to +65C
  • Humidity Rating: MIL-STD-202 Method 106
  • Salt Spray: MIL-STD-202 Method 101
  • Mechanical Shock: MIL-STD-202 Method 107
  • Minimum Temperature: -20 C
  • Maxiumum Temperature: 65 C

Compliance

  • RoHS Compliant: Compliant
  • REACH Compliant: Compliant
  • Brand: Switchcraft

Material

  • Body Material: Copper Alloy
  • Body Plating: Nickel
  • Terminal Material: Copper Alloy Silver-Plated
  • Spring Material: Copper Alloy
  • Sleeve Material: Copper Alloy
