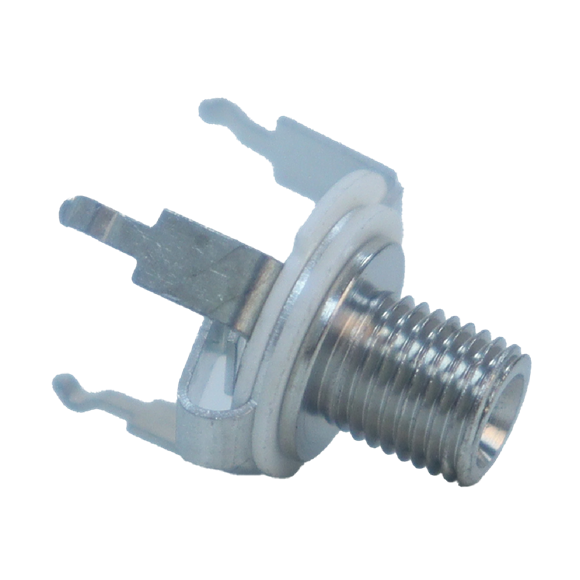

2-conductor closed circuit jack with PC
terminals. Open frame and enclosed versions available. Mates with Switchcraft Micro Plug numbers 850, 855, and 880.
Configuration
-
Number of Conductors:
2
-
Product Line:
Micro-Jax
-
Mounting Type:
Panel
-
Mounting Feature:
Enclosed
-
Termination Style:
PC Mount
-
Color:
nickel
-
Locking:
Locking
-
Sealed:
Not Sealed
-
Insert Material:
Rigid Plastic Insulating Spacers
-
Packaging Type:
Bulk
-
Standard Connector Type:
0.101" [2.56mm]
-
Shunt:
Shunted
-
Jack-Plug Type:
Jack
Electrical
-
Contact Resistance:
0.01 Ohms
-
Dielectric Withstanding Voltage:
250 Volts
-
Insulation Resistance:
10000 MOhms
-
Current Rating:
0.125 Amps
Mechanical
-
Life Cycle:
10000 Cycles
-
Operating Force:
0.68 lbs
-
Coupling Locking Style:
Bayonet
Environmental
-
Temperature Range:
-20C to +65C
-
Humidity Rating:
MIL-STD-202 Method 106
-
Salt Spray:
MIL-STD-202 Method 101
-
Mechanical Shock:
MIL-STD-202 Method 107
-
Minimum Temperature:
-20 C
-
Maxiumum Temperature:
65 C
Compliance
-
RoHS Compliant:
Compliant
-
REACH Compliant:
Compliant
-
Brand:
Switchcraft
Material
-
Body Material:
Copper Alloy
-
Body Plating:
Nickel
-
Terminal Material:
Copper Alloy Silver-Plated
-
Spring Material:
Copper Alloy
-
Sleeve Material:
Copper Alloy
