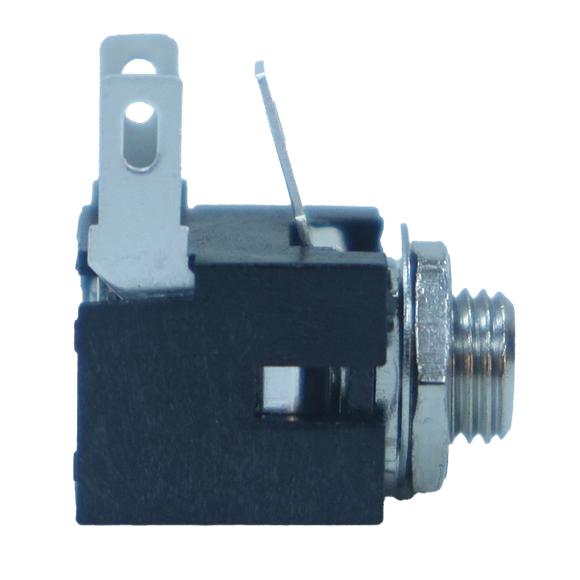

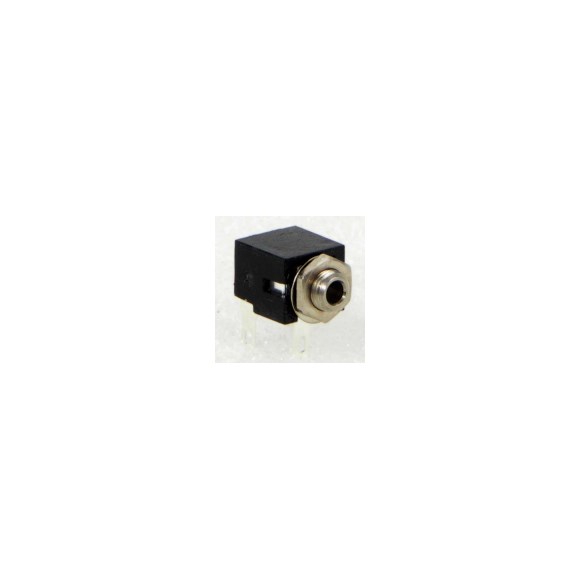

MDSL2ARA

.101" MICRO JACK, 2-conductor, right-angle solder lugs and #10-48 threaded bushing for chassis/panel mount. Mounts in .203 inch diameter hole in chassis/panels up to .063 inches thick

In stock

Drawings:

Buy Now

View More From This Family

Details
Specifications
Documents

2-conductor closed circuit jack with PC terminals. Mounts to single-, double-sided or multilayer boards either singly or in rows as close as 0.344" centers (+/- .01 inches). Bushing is 0.10" inside diameter. Right-angle solder lugs and #10-48 threaded bushing for chassis/panel mount. Mounts in .203" diameter hole in chassis/panels up to .063" thick.

Configuration

Number of Conductors: 2
Product Line: Micro-Jax
Mounting Type: Panel
Mounting Feature: Enclosed
Termination Style: Right Angle Solder
Color: nickel
Locking: Locking
Sealed: Not Sealed
Insert Material: Rigid Plastic Insulating Spacers
Packaging Type: Bulk
Standard Connector Type: 0.101" [2.56mm]
Shunt: Shunted
Jack-Plug Type: Jack

Electrical

Contact Resistance: 0.01 Ohms
Dielectric Withstanding Voltage: 250 Volts
Insulation Resistance: 10000 MOhms
Current Rating: 0.125 Amps

Mechanical

Life Cycle: 10000 Cycles
Operating Force: 0.68 lbs
Coupling Locking Style: Bayonet

Environmental

Temperature Range: -20C to +65C
Humidity Rating: MIL-STD-202 Method 106
Salt Spray: MIL-STD-202 Method 101
Mechanical Shock: MIL-STD-202 Method 107
Minimum Temperature: -20 C
Maxiumum Temperature: 65 C

Compliance

RoHS Compliant: Compliant
REACH Compliant: Compliant
Brand: Switchcraft

Material

Body Material: Copper Alloy
Body Plating: Nickel
Terminal Material: Copper Alloy Silver-Plated
Spring Material: Copper Alloy
Sleeve Material: Copper Alloy
