Switchcraft

883X

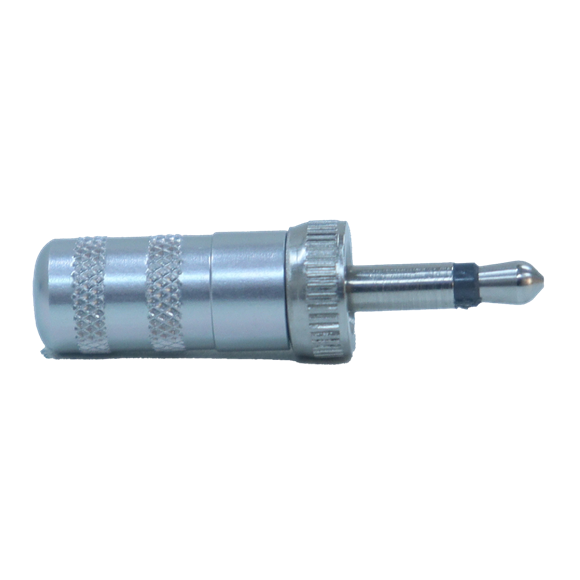

.101" Micro Plug, solder lug terminal, natural handle, locking, wide insulator

Out of stock
Drawings:


Buy Now

View More From This Family

Configuration

  • Product Line: Micro-Jax
  • Mounting Type: Cable
  • Termination Style: Solder Cup
  • Color: Natural
  • Locking: Locking
  • Handle Material: Aluminum
  • Standard Connector Type: 0.101" [2.56mm]

Electrical

  • Contact Resistance: 0.01 Ohms
  • Dielectric Withstanding Voltage: 500 Volts
  • Insulation Resistance: 10000 MOhms
  • Current Rating: 0.125 Amps

Mechanical

  • Life Cycle: 10000 Cycles
  • Operating Force: 0.68 lbs
  • Coupling Locking Style: Bayonet

Environmental

  • Humidity Rating: MIL-STD-202 Method 106
  • Salt Spray: MIL-STD-202 Method 101
  • Mechanical Shock: MIL-STD-202 Method 107
  • Maxiumum Temperature: 85 C

Certification

  • RoHS Compliant: Compliant
  • REACH Compliant: Compliant
  • Brand: Switchcraft

Material

  • Spring Material: Copper Alloy Silver-Plated
