.101" Micro Plug, solder lug terminal, natural handle, locking
Enlarge
There are no alternate images available for this product.
881X

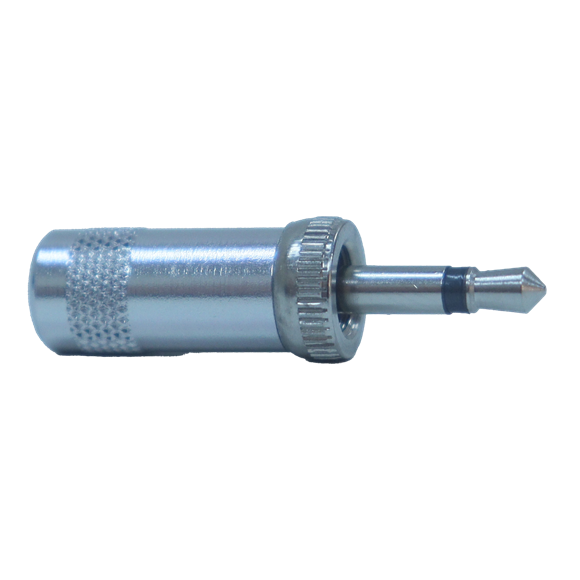

.101" Micro Plug, solder lug terminal, natural handle, locking
In stock
Drawings:
Buy Now
View More From This Family
Specifications
Documents
Configuration
Number of Conductors:
2
Product Line:
Micro-Jax
Mounting Type:
Cable
Termination Style:
Solder Cup
Color:
Natural
Locking:
Locking
Sealed:
Not Sealed
Handle Material:
Aluminum
Packaging Type:
Bulk
Standard Connector Type:
0.101" [2.56mm]
Jack-Plug Type:
Plug
Electrical
Contact Resistance:
0.01 Ohms
Dielectric Withstanding Voltage:
250 Volts
Insulation Resistance:
10000 MOhms
Current Rating:
0.125 Amps
Mechanical
Life Cycle:
10000 Cycles
Operating Force:
0.68 lbs
Coupling Locking Style:
Bayonet
Environmental
Temperature Range:
-20C to +65C
Humidity Rating:
MIL-STD-202 Method 106
Salt Spray:
MIL-STD-202 Method 101
Mechanical Shock:
MIL-STD-202 Method 107
Minimum Temperature:
-20 C
Maxiumum Temperature:
65 C
Compliance
RoHS Compliant:
Compliant
REACH Compliant:
Compliant
Brand:
Switchcraft
Material
Spring Material:
Copper Alloy Silver-Plated
