Switchcraft

ST15S

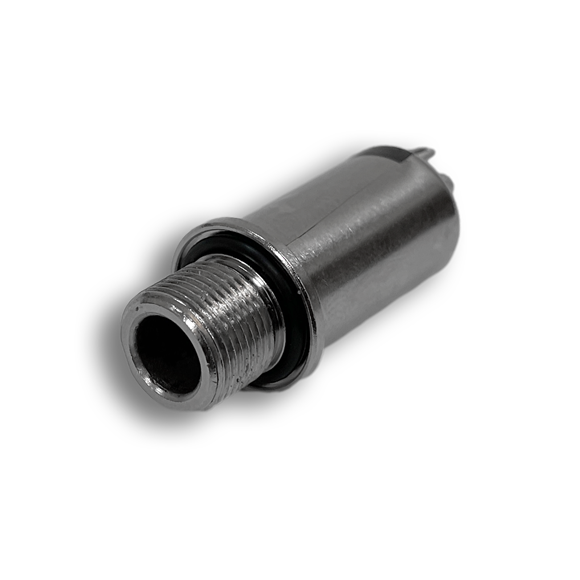

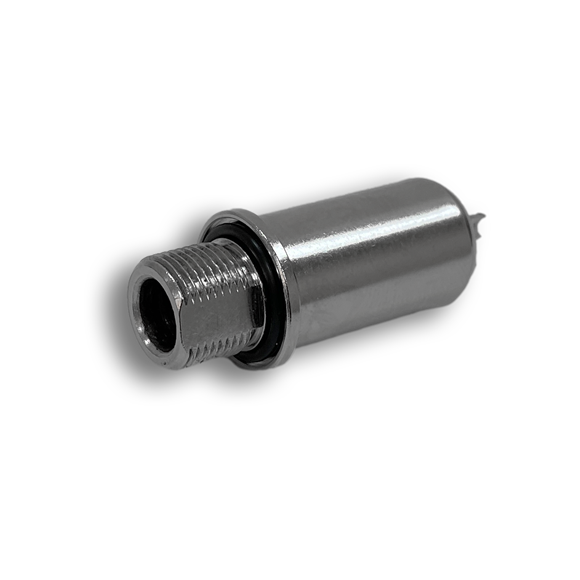

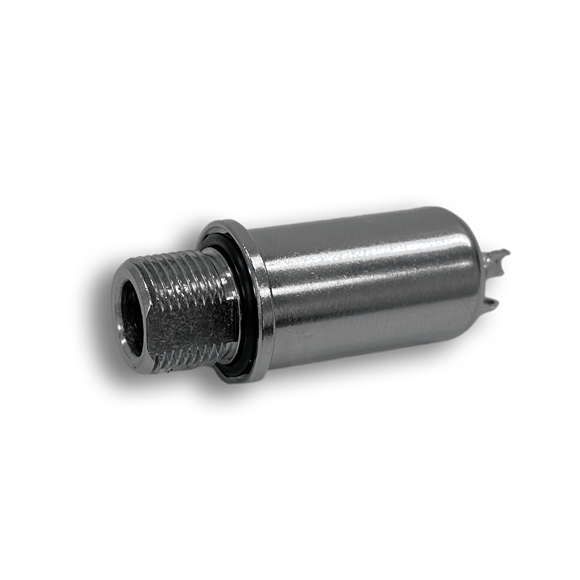

15 Amp Series Sealed Jack

Out of stock
Drawings:


Buy Now

View More From This Family

Configuration

  • Number of Conductors: 2
  • Product Line: High Amperage
  • Mounting Type: Panel
  • Termination Style: Solder
  • Contact Plating: Silver
  • High Current: 1
  • Locking: Locking
  • Sealed: Sealed
  • Packaging Type: Bulk
  • Jack-Plug Type: Jack

Electrical

  • Voltage Rating: 24 Volts
  • Current Rating: 15 Amps
  • Circuit-Schematic: Single Open

Mechanical

  • Life Cycle: 5000 Cycles
  • Coupling Locking Style: Threaded

Environmental

  • Temperature Range: -40?C to +105?C
  • Shielding: Shielded
  • Maxiumum Temperature: 105 C

Certification

  • RoHS Compliant: 1
  • REACH Compliant: 1
  • Brand: Switchcraft
  • Touch Proof: 1
  • IP Rating: IP68
  • IP66: 1
  • IP67: 1
  • IP68: 1

Material

  • Body Material: Copper Alloy
  • Body Plating: Nickel
  • Contact Material: Copper Alloy
  • Contact Plating Type: Silver
  • Terminal Material: Copper Alloy
  • O-Ring Material: Silicon
