2.0mm Center Pin, Short Barrel, Locking
Enlarge
There are no alternate images available for this product.

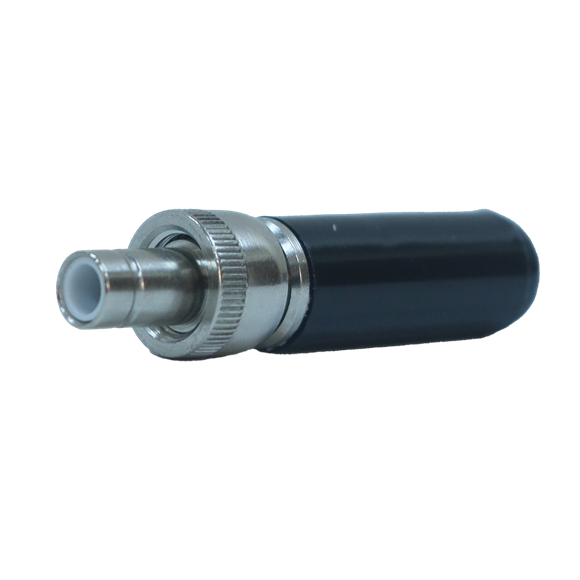

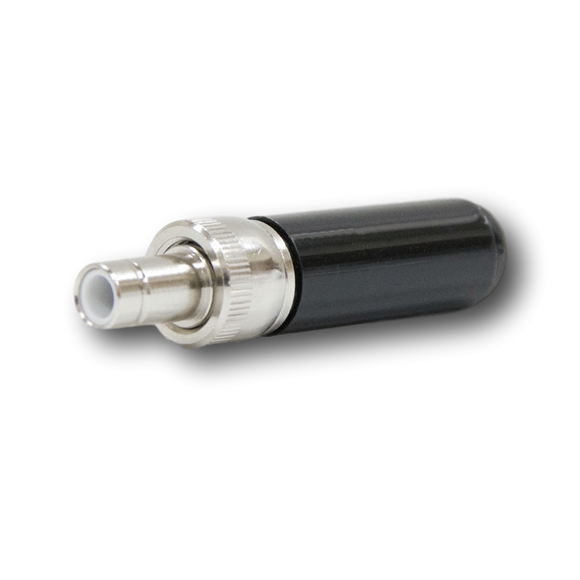

S760KZ
2.0mm Center Pin, Short Barrel, Locking
In stock
Drawings:
Buy Now
View More From This Family
Specifications
Videos
Documents
Configuration
Number of Conductors:
2
Product Line:
Power Jax
Mounting Type:
Cord
Mounting Feature:
Larger Cable Clamp
Termination Style:
Solder
Contact Plating:
Nickel
Color:
Black
High Temperature:
Standard Temperature
High Current:
Standard Current
Locking:
Locking
Sealed:
Not Sealed
Handle Material:
Thermoplastic
Packaging Type:
Bulk
Standard Connector Type:
DC Barrel Connectors
Jack-Plug Type:
Plug
Center Pin Size:
2 mm
Electrical
Contact Resistance:
0.01 Ohms
Dielectric Withstanding Voltage:
500 Volts
Insulation Resistance:
1000 MOhms
Voltage Rating:
24 Volts
Current Rating:
5 Amps
Mechanical
Life Cycle:
5000 Cycles
Coupling Locking Style:
Threaded
Environmental
Temperature Range:
-55?C to +85?C
Shielding:
Unshielded
Minimum Temperature:
-55 C
Maxiumum Temperature:
85 C
Compliance
RoHS Compliant:
Compliant
REACH Compliant:
Compliant
Brand:
Switchcraft
Touch Proof:
Touch Proof
Dimensional
Inner Diameter:
0.08 in
Cable Opening:
0.218 in
Material
Body Material:
Copper Alloy
Body Plating:
Nickel
Contact Material:
Copper Alloy
Contact Plating Type:
Nickel
Terminal Material:
Copper Alloy
Sleeve Material:
Copper Alloy
