Switchcraft

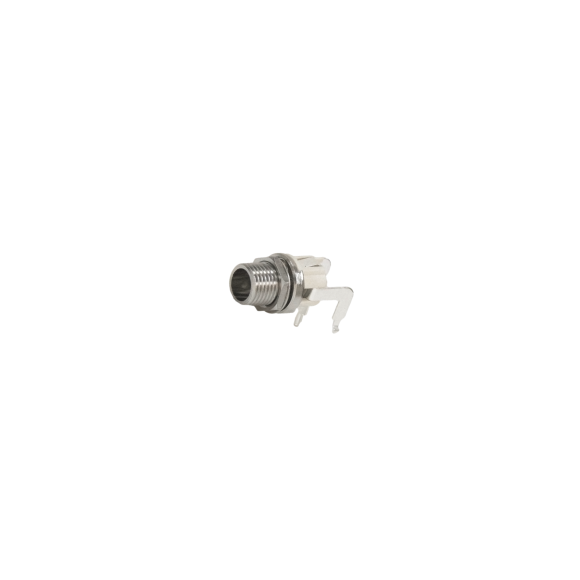

L722RAHLP

2.0mm Pin Meter, 8.1mm Bushing Length, Temp Max 105C, 7.5A

In stock
Drawings:


Buy Now

View More From This Family

Configuration

  • Number of Conductors: 2
  • Product Line: Power Jax
  • Mounting Type: Panel
  • Mounting Feature: Extended Bushing
  • Termination Style: Right Angle PC Mount
  • Contact Plating: Silver
  • High Temperature: High Temperature
  • Locking: Locking
  • Low Profile: 1
  • Packaging Type: Bulk
  • Standard Connector Type: DC Barrel Connectors
  • Shunt: Shunted
  • Jack-Plug Type: Jack
  • PC Mount Style: Thru-Hole
  • Center Pin Size: 2 mm

Electrical

  • Voltage Rating: 24 Volts
  • Current Rating: 7.5 Amps
  • Circuit-Schematic: Single Closed

Mechanical

  • Coupling Locking Style: Threaded

Environmental

  • Maxiumum Temperature: 105 C

Certification

  • RoHS Compliant: Compliant
  • REACH Compliant: Compliant
  • Brand: Switchcraft

Material

  • Contact Material: Copper Alloy
  • Contact Plating Type: Nickel
  • Terminal Material: Copper Alloy
