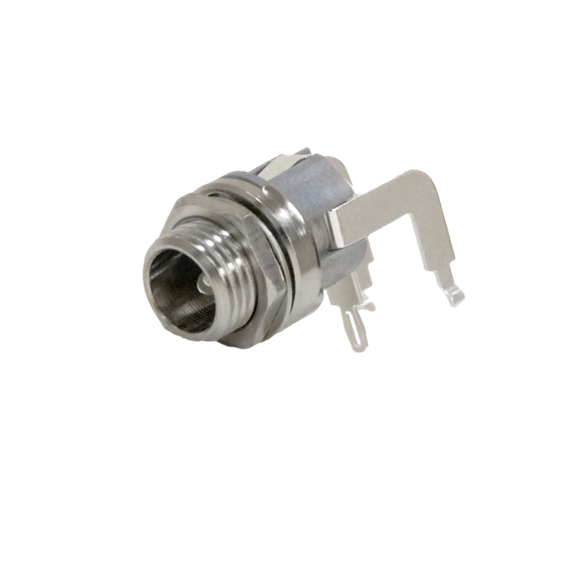

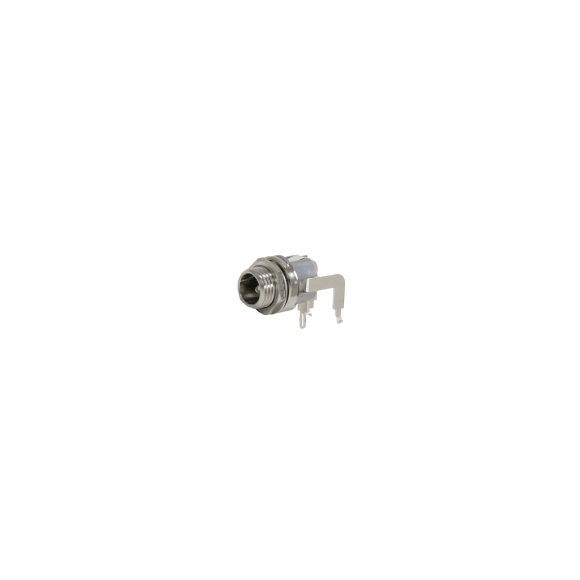

2.1mm Pin Meter, 5.5mm Bushing Length, Temp Max 105°C, 7.5A
Enlarge
There are no alternate images available for this product.
721RAHLP
2.1mm Pin Meter, 5.5mm Bushing Length, Temp Max 105C, 7.5A
In stock
Drawings:
Symbol, Footprint, 3D Model
Buy Now
View More From This Family
Specifications
Videos
Documents
Configuration
Number of Conductors:
2
Product Line:
Power Jax
Mounting Type:
Panel
Termination Style:
Right Angle PC Mount
Contact Plating:
Silver
High Temperature:
High Temperature
High Current:
Standard Current
Locking:
Locking
Sealed:
Not Sealed
Low Profile:
Low Profile
Packaging Type:
Bulk
Standard Connector Type:
DC Barrel Connectors
Shunt:
Shunted
Jack-Plug Type:
Jack
PC Mount Style:
Thru-Hole
Center Pin Size:
2.1 mm
Electrical
Contact Resistance:
0.01 Ohms
Dielectric Withstanding Voltage:
500 Volts
Insulation Resistance:
10000 MOhms
Voltage Rating:
24 Volts
Current Rating:
7.5 Amps
Circuit-Schematic:
Single Closed
Mechanical
Life Cycle:
10000 Cycles
Coupling Locking Style:
Threaded
Environmental
Temperature Range:
-40?C to +105?C
Shielding:
Unshielded
Minimum Temperature:
-40 C
Maxiumum Temperature:
105 C
Compliance
RoHS Compliant:
Compliant
REACH Compliant:
Compliant
Brand:
Switchcraft
Material
Body Material:
Copper Alloy
Body Plating:
Nickel
Contact Material:
Copper Alloy
Contact Plating Type:
Silver
Terminal Material:
Copper Alloy
Sleeve Material:
Copper Alloy
