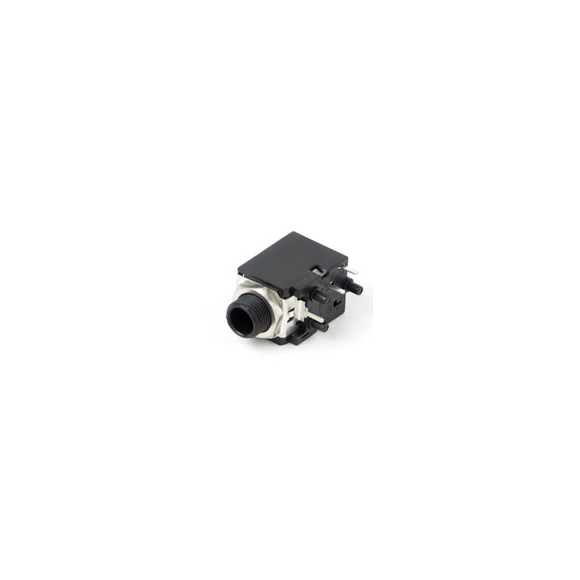

RN112APC
Enlarge
RN112APC
  • There are no alternate images available for this product.

  •
Switchcraft

RN112APC

2-cond., single closed circuit

In stock
Drawings:


Buy Now

View More From This Family

RN Series right-angle 1/4" Hi-D Jax permits space-saving mounting on PC boards. They can can mate with .25" diameter COMMERCIAL or TELEPHONE/MIL plug fingers. Right-angle jack permits tip of mating plug to be inserted parallel with PC board. Can be mounted on PC boards or combined PC board and panel/chassis. Mounted through .375" diameter holes (locknut and washer supplied) in panels and chassis up to .141" thick. Minimum mounting centers are .625". If insulated mount is desired, mounting with flat, non-conductive washer (not supplied) is recommended. PC terminals mount on boards up to .125" thick, and hand dip or wave soldering is recommended. Three separate standoffs fit through board to provide stable mounting. Threaded bushing permits optional fastening to panel or chassis.  Bushing is .278" long

Configuration

  • Number of Conductors: 2
  • Product Line: Littel Jacks
  • Mounting Type: Panel
  • Mounting Feature: Insulated Bushing
  • Termination Style: Right Angle PC Mount
  • Contact Plating: Tin
  • Locking: Locking
  • Sealed: Not Sealed
  • Packaging Type: Bulk
  • Standard Connector Type: 1/4" Phone Jacks & Plugs
  • Shunt: Shunted
  • Jack-Plug Type: Jack
  • PC Mount Style: Thru-Hole

Electrical

  • Contact Resistance: 0.02 Ohms
  • Dielectric Withstanding Voltage: 500 Volts
  • Insulation Resistance: 10000 MOhms
  • Circuit-Schematic: Single Closed

Mechanical

  • Life Cycle: 10000 Cycles
  • Operating Force: 0.75 lbs
  • Coupling Locking Style: Threaded
  • Panel Thickness: 0.141 in

Environmental

  • Humidity Rating: MIL-STD-202 Method 106
  • Salt Spray: MIL-STD-202 Method 101
  • Mechanical Shock: MIL-STD-202 Method 213

Compliance

  • RoHS Compliant: Compliant
  • REACH Compliant: Compliant
  • Brand: Switchcraft

Material

  • Body Material: Thermoplastic
  • Spring Material: Copper Alloy
