2 Conductor, Screw Terminals, Black Handle

In stock
This item is special order

Buy Now

View More From This Family

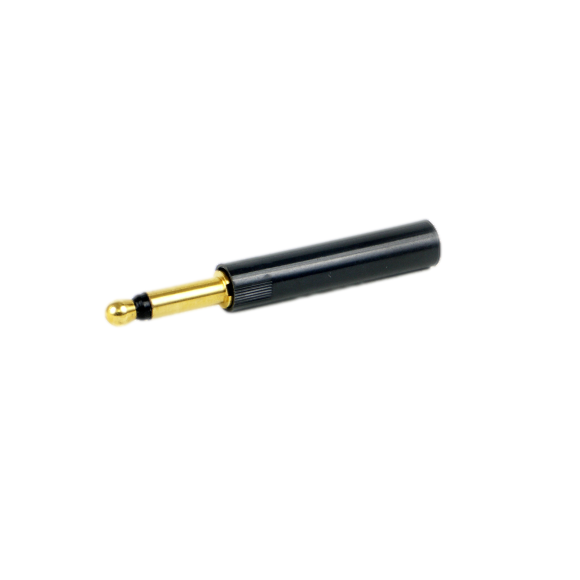

Miniature non-shorting telephone plugs designed for use with TT-Jax, Unijax, and other phone jacks with a .176" inside diameter bushing. Approximately 1/2 the size of standard phone plugs, yet retains the uniformity, dependability and quality of MIL-type phone plugs. TT-Plug Miniature Telephone Plugs are the first to offer 2- and 3-conductors in an attachable type with twist handles for quick assembly. Other color handles available on special order. Plugs feature a one-piece tip rod, ring and a one-piece sleeve with integral plug body, assembled together into a mold as inserts. Providing complete continuity of thermoplastic insulation between tip rod, ring and sleeve. Internal interlock of all parts prevents shifting and shorting under extreme rugged usage. Internal 12-24 threads in end of plug body are intended for threading over outer jacket of a patch cord to provide a superior cable anchor. Patch cords such as Switchcraft Series TT700 (or other .216" diameter cable) are easily attached to Series TT250 by screw terminals.


Designed for pro audio applications 3 Conductor

0.173" (4.40mm) plug finger diameter

One-piece tip rod ensures high reliability

Complete continuity of thermoplastic insulation between conductors

Internal keying of all parts preventing shifting and shorting

Solder terminals for easier termination and assembly

Large cable clamp for shield termination and strain relief


  • Number of Conductors: 2
  • Product Line: TT Jax
  • Mounting Type: Cord
  • Termination Style: Screw Terminals
  • Contact Plating: None
  • Color: Black
  • Sealed: Not Sealed
  • Handle Material: Thermoplastic
  • Packaging Type: Bulk
  • Number of Stations: 1
  • Standard Connector Type: TT/Bantam Jacks & Plugs
  • Jack-Plug Type: Plug


  • RoHS Compliant: Compliant
  • REACH Compliant: Compliant
  • Brand: Switchcraft


  • Cable Opening: 0.31 in


  • Body Material: Copper Alloy
  • Body Plating: Natural
  • Contact Material: Copper Alloy
  • Insert Material Type: Thermoplastic
  • Terminal Material: Copper Alloy
