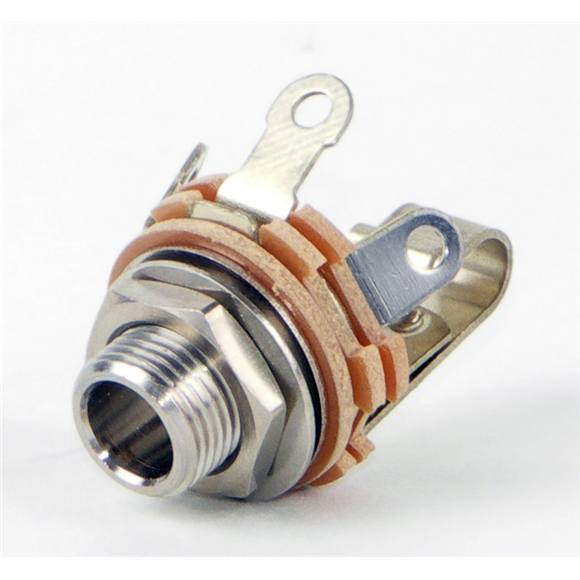

12a_product
Enlarge
12a_product
  • There are no alternate images available for this product.

  •
Switchcraft

S12A

.210" ID Open Frame Jack, 2 conductor

Out of stock
This item is special order
Drawings:


Buy Now

View More From This Family

Configuration

  • Number of Conductors: 2
  • Mounting Type: Panel
  • Mounting Feature: Open Frame
  • Termination Style: Solder Cup
  • Sealed: Sealed
  • Packaging Type: Bulk
  • Standard Connector Type: .206" [5.2mm]
  • Shunt: Shunted
  • Jack-Plug Type: Jack

Electrical

  • Contact Resistance: 0.03 Ohms
  • Dielectric Withstanding Voltage: 500 Volts
  • Insulation Resistance: 10000 MOhms
  • Current Rating: 1 Amps

Mechanical

  • Life Cycle: 10000 Cycles
  • Panel Thickness: 0.156 in

Environmental

  • Humidity Rating: MIL-STD-202 Method 106
  • Moisture Resistance: MIL-STD-202 Method 106
  • Salt Spray: MIL-STD-202 Method 101
  • Mechanical Shock: MIL-STD-202 Method 107
  • Maxiumum Temperature: 85 C

Compliance

  • RoHS Compliant: Compliant
  • REACH Compliant: Compliant
  • Brand: Switchcraft

Material

  • Terminal Material: Copper Alloy
  • Spring Material: Copper Alloy
