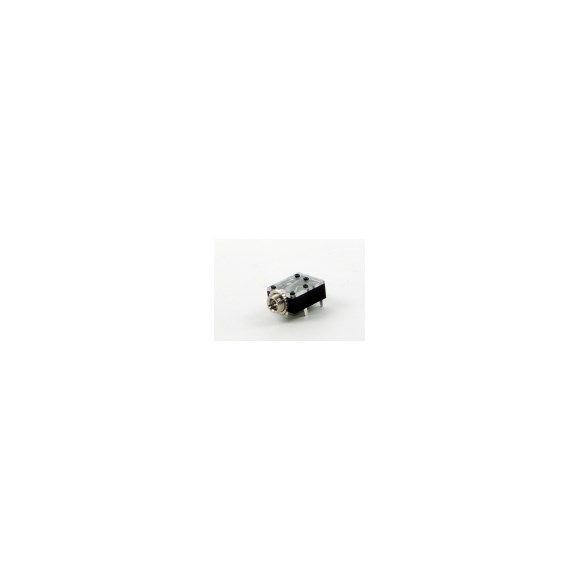

3.5MM PC horizontal mount Jack, stereo, threaded bushing
Enlarge
There are no alternate images available for this product.
35RAPC3BH3
3.5MM PC horizontal mount Jack, stereo, threaded bushing
In stock
Drawings:
Symbol, Footprint, 3D Model
Buy Now
View More From This Family
Specifications
Videos
Documents
Configuration
Number of Conductors:
3
Mounting Type:
Panel
Mounting Feature:
Horizontal Mount
Termination Style:
PC Mount
Contact Plating:
Silver
Color:
Clear Cover
Locking:
Locking
Sealed:
Not Sealed
Low Profile:
Low Profile
Packaging Type:
Bulk
Number of Stations:
1
Standard Connector Type:
3.5mm Jacks & Plugs
Shunt:
Shunted
Jack-Plug Type:
Jack
PC Mount Style:
Thru-Hole
Electrical
Contact Resistance:
0.02 Ohms
Dielectric Withstanding Voltage:
250 Volts
Insulation Resistance:
100 MOhms
Circuit-Schematic:
Tip Shunt
Mechanical
Life Cycle:
5000 Cycles
Operating Force:
3.5 lbs
Coupling Locking Style:
Threaded
Environmental
Shielding:
Unshielded
Flame Rating:
UL 94V-1
Compliance
RoHS Compliant:
Compliant
REACH Compliant:
Compliant
Brand:
Switchcraft
Material
Body Material:
Thermoplastic
Terminal Material:
Copper Alloy Silver-Plated
Spring Material:
Steel Wire
Overview
3.5mm Inline Jacks
3.5mm Stereo Panel Mount Jacks
