Switchcraft

35RASMT6CHNTRX

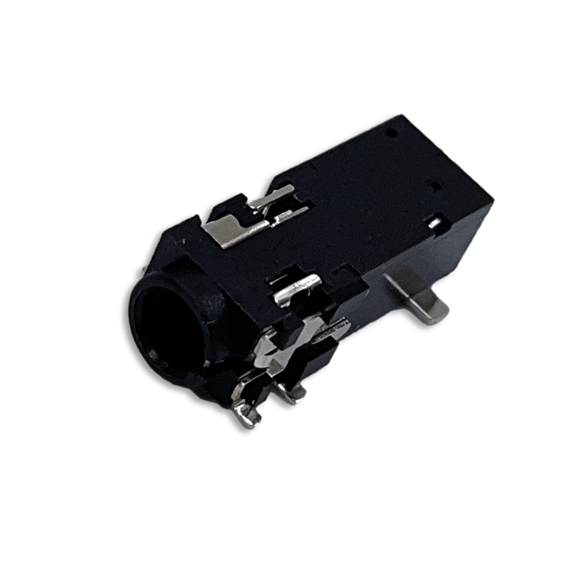

3.5MM SMT Jack, Narrow Body, TRRS, Tip Switch, On Tape & Reel

In stock
Drawings:


Buy Now

View More From This Family

Configuration

  • Number of Conductors: 4
  • Mounting Type: Panel
  • Mounting Feature: Horizontal Mount
  • Termination Style: PC Mount
  • Contact Plating: Gold
  • Color: Black
  • Locking: Non-Locking
  • Sealed: Not Sealed
  • Low Profile: Low Profile
  • Packaging Type: Tape & Reel
  • Number of Stations: 1
  • Standard Connector Type: 3.5mm Jacks & Plugs
  • Shunt: Shunted
  • Jack-Plug Type: Jack
  • PC Mount Style: Surface Mount

Electrical

  • Contact Resistance: 0.05 Ohms
  • Dielectric Withstanding Voltage: 250 Volts
  • Insulation Resistance: 100 MOhms
  • Current Rating: 3 Amps
  • Circuit-Schematic: TRRS (Tip Switch)

Mechanical

  • Life Cycle: 5000 Cycles

Environmental

  • Shielding: Unshielded
  • Maxiumum Temperature: 85 C

Compliance

  • RoHS Compliant: Compliant
  • REACH Compliant: Compliant
  • Brand: Switchcraft

Material

  • Body Material: Thermoplastic
  • Terminal Material: Copper Alloy
  • Spring Material: Copper Alloy
