Switchcraft

35RASMT4BHWNTRX

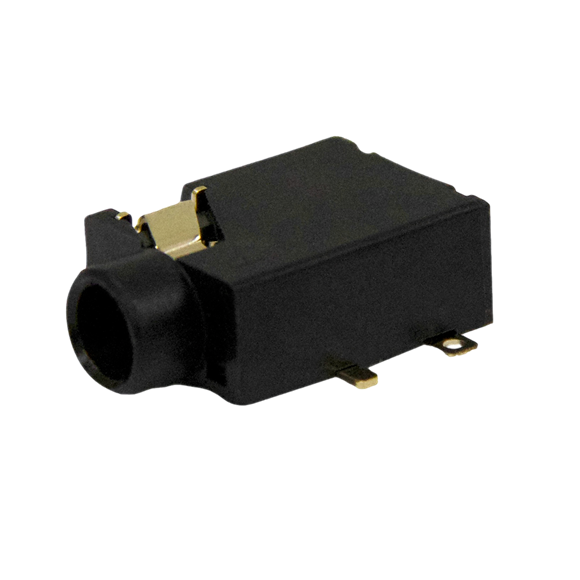

3.5MM SMT Jack, Wide Body, 4B (Double Closed Circuit)

In stock
Drawings:


Buy Now

View More From This Family

Configuration

  • Number of Conductors: 3
  • Mounting Type: Panel
  • Mounting Feature: Horizontal Mount
  • Termination Style: PC Mount
  • Contact Plating: Gold
  • Color: Black
  • Locking: Non-Locking
  • Sealed: Not Sealed
  • Low Profile: Low Profile
  • Packaging Type: Tape & Reel
  • Number of Stations: 1
  • Standard Connector Type: 3.5mm Jacks & Plugs
  • Jack-Plug Type: Jack
  • Special Feature: Wide Body

Electrical

  • Contact Resistance: 0.05 Ohms
  • Dielectric Withstanding Voltage: 250 Volts
  • Insulation Resistance: 100 MOhms
  • Current Rating: 3 Amps
  • Circuit-Schematic: Double Closed

Mechanical

  • Life Cycle: 5000 Cycles

Environmental

  • Shielding: Unshielded
  • Maxiumum Temperature: 85 C

Compliance

  • RoHS Compliant: Compliant
  • REACH Compliant: Compliant
  • Brand: Switchcraft

Material

  • Body Material: Thermoplastic
  • Terminal Material: Copper Alloy
  • Spring Material: Copper Alloy
