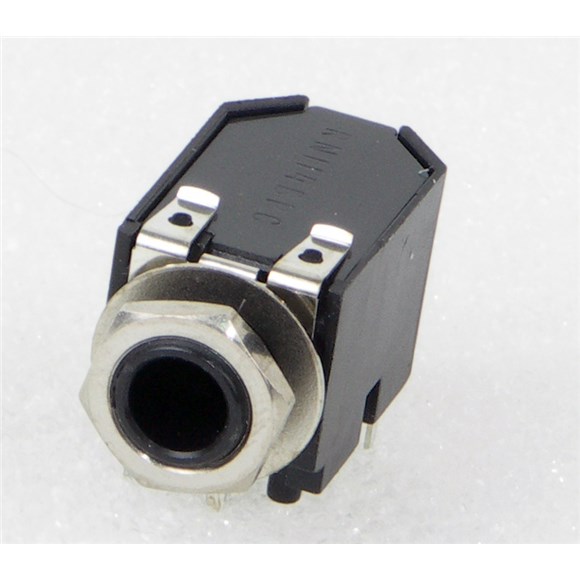

rn114bpc
Enlarge
rn114bpc
  • There are no alternate images available for this product.

  •
Switchcraft

RN114BPC

3-cond., double closed circuit

In stock
Drawings:


Buy Now

View More From This Family

Configuration

  • Number of Conductors: 3
  • Product Line: Littel Jacks
  • Mounting Type: Panel
  • Mounting Feature: Insulated Bushing
  • Termination Style: Right Angle PC Mount
  • Contact Plating: Tin
  • Locking: Locking
  • Packaging Type: Bulk
  • Standard Connector Type: 1/4" Phone Jacks & Plugs
  • Shunt: Shunted
  • Jack-Plug Type: Jack
  • PC Mount Style: Thru-Hole

Electrical

  • Contact Resistance: 0.02 Ohms
  • Insulation Resistance: 10000 MOhms
  • Circuit-Schematic: Double Closed

Mechanical

  • Life Cycle: 10000 Cycles
  • Operating Force: 2 lbs
  • Coupling Locking Style: Threaded

Certification

  • RoHS Compliant: Compliant
  • REACH Compliant: Compliant
  • Brand: Switchcraft

Material

  • Spring Material: Copper Alloy
