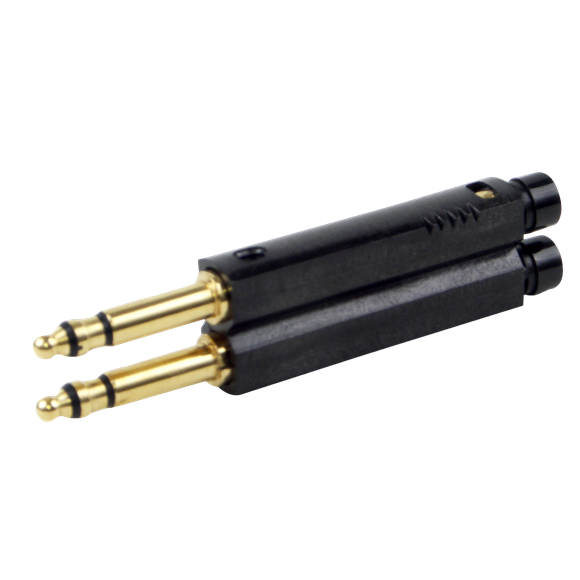

TT263
Enlarge
TT263
  • There are no alternate images available for this product.

  •
Switchcraft

TT263

3 Conductor, Screw Terminals, Black Handle

Out of stock
This item is special order
Drawings:


Buy Now

View More From This Family

Miniature non-shorting telephone plugs designed for use with TT-Jax, Unijax, and other phone jacks with a .176" inside diameter bushing. Approximately 1/2 the size of standard phone plugs, yet retains the uniformity, dependability and quality of MIL-type phone plugs. TT-Plug Miniature Telephone Plugs are the first to offer 2- and 3-conductors in an attachable type with twist handles for quick assembly. Other color handles available on special order. Plugs feature a one-piece tip rod, ring and a one-piece sleeve with integral plug body, assembled together into a mold as inserts. Providing complete continuity of thermoplastic insulation between tip rod, ring and sleeve. Internal interlock of all parts prevents shifting and shorting under extreme rugged usage. Internal 12-24 threads in end of plug body are intended for threading over outer jacket of a patch cord to provide a superior cable anchor. Patch cords such as Switchcraft Series TT700 (or other .216" diameter cable) are easily attached to Series TT250 by screw terminals.

FEATURES AND BENEFITS

Designed for pro audio applications 3 Conductor

0.173" (4.40mm) plug finger diameter

One-piece tip rod ensures high reliability

Complete continuity of thermoplastic insulation between conductors

Internal keying of all parts preventing shifting and shorting

Solder terminals for easier termination and assembly

Large cable clamp for shield termination and strain relief

DISASSEMBLY: Place plug on edge. Push down and back on metal lip on finger (inside notch) with small screwdriver and slip plug finger out of handle. Turn plug over and repeat for other finger.

CABLE INSTALLATION: Fold braided shield on cable back over insulation. Insert leads through rear of plug finger, and screw finger (clockwise) onto cable with twisting motion until lead terminations lineup with threaded tip and/or ring openings. Fasten terminals on both fingers with screws provided.

To bridge sleeves (common connection), place free end of braided shield in remaining finger sleeve opening. Press sleeve plug firmly in place.

Configuration

  • Number of Conductors: 3
  • Product Line: TT Jax
  • Mounting Type: Cord
  • Termination Style: Screw Terminals
  • Contact Plating: None
  • Color: Black
  • Sealed: Not Sealed
  • Handle Material: Thermoplastic
  • Packaging Type: Bulk
  • Number of Stations: 2
  • Standard Connector Type: TT/Bantam Jacks & Plugs
  • Jack-Plug Type: Plug

Compliance

  • RoHS Compliant: Compliant
  • REACH Compliant: Compliant
  • Brand: Switchcraft

Dimensional

  • Cable Opening: 0.156 in

Material

  • Body Material: Copper Alloy
  • Body Plating: Natural
  • Contact Material: Welded Crossbar Palladium
  • Insert Material Type: Thermoplastic
  • Terminal Material: Copper Alloy
