Switchcraft

EAC309X

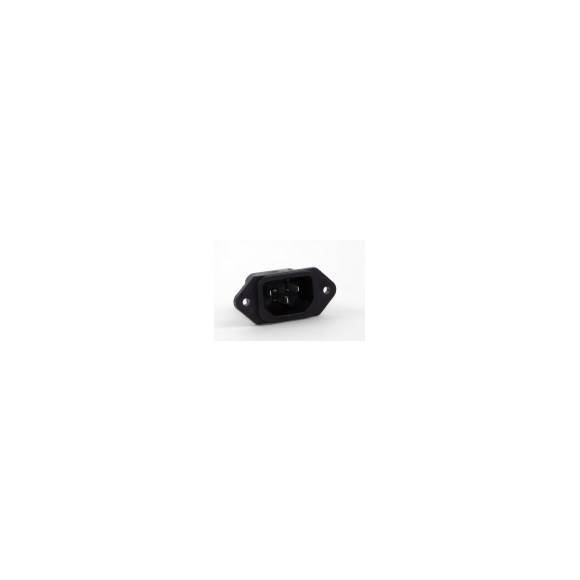

3-pin Panel Mount Connector, male, screw mount, solder lug terminal. UL, CSA

In stock
Drawings:


Buy Now

View More From This Family

Configuration

  • Number of Conductors: 3
  • Mounting Type: Panel
  • Gender: Male
  • Termination Style: Solder Cup
  • Contact Plating: Tin
  • Color: Black
  • Packaging Type: Bulk
  • Standard Connector Type: EAC

Electrical

  • Insulation Resistance: 2.00E+06 MOhms
  • Dielectric Strength: 1500 V/m

Environmental

  • Flame Rating: UL 94V-0
  • Salt Spray: MIL-STD-202 Method 101
  • Maxiumum Temperature: 65 C

Compliance

  • RoHS Compliant: Compliant
  • CSA: 1
  • UL: 1
  • REACH Compliant: Compliant
  • Brand: Switchcraft

Material

  • Contact Material: Copper Alloy
  • Terminal Material: Copper Alloy
