AC Power Cords

AC Power Cords

Designed for primary power connections in U.S., Canadian and European electrical/electronic equipment (test equipment, business machines, computers and appliances). All cords are UL and CSA listed.




Description Part
Number
Cord Length AWG
(Stranding)
(Dia. in mm)
Nominal Outside Dimension Rating
W
Cordage
and Color
feet m inches mm
UL and CSA listed; National Stock Number 6150-00-351-3405 P2392 7.5 2.29 18(41x343) (1.19) .253 6.43 1250
(10A,125V)
SVT
Vinyl Black
European color coding (Brown, Light Blue, Green with Yellow stripe) P2723 7.5 2.29 14(41x30 (1.91) .385 9.78 1875
(15A,125V)
SJT
Vinyl Black

Configuration

  • Number of Conductors: 3
  • Mounting Type: Cable
  • Termination Style: NEMA 5-15P
  • Contact Plating: Tin
  • Color: Black
  • Packaging Type: Bulk
  • Standard Connector Type: IEC 320

Electrical

  • Current Rating: 10 Amps

Certification

  • RoHS Compliant: Compliant
  • CSA: 1
  • UL: 1
  • REACH Compliant: Compliant
  • Brand: Switchcraft

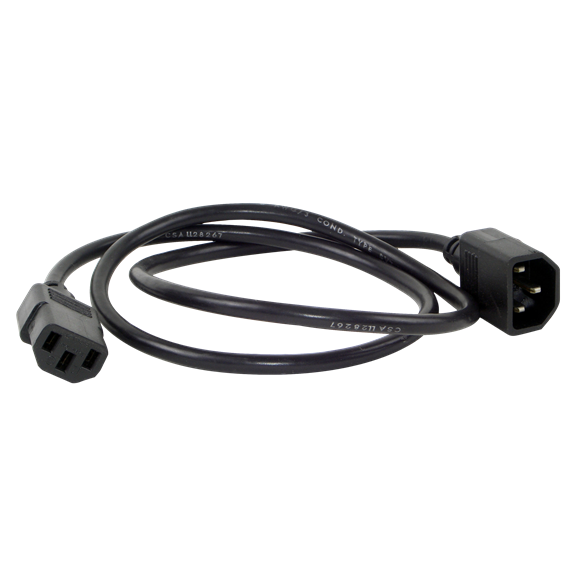

iec_power_cord
