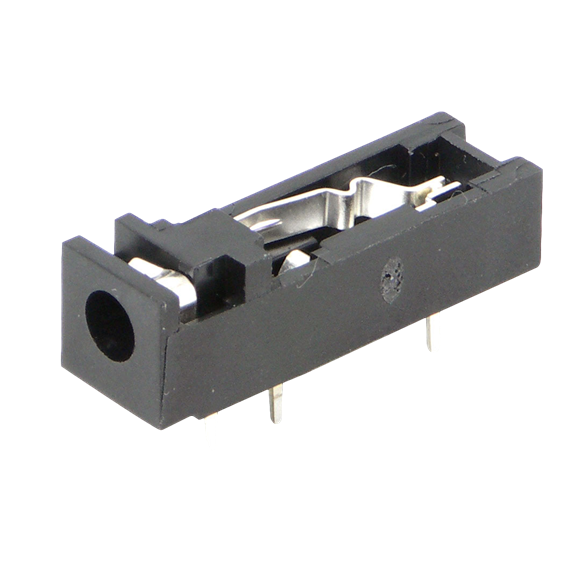

Bantam / TT Jack, Right Angle PC Mount, Double Closed Circuit

In stock

Buy Now

View More From This Family

Right-angle miniature phone jacks provide low-profile packaging. Single and twin 3-conductor jacks provide plug-jack access to communication circuits for patching and/or testing. Tips and rings are shunted. These jacks mate with Switchcraft miniature TT plugs and patch cords. Jacks are designed for right-angle mounting on .062" (1.6 mm) maximum thickness PC boards. Snap-on covers in colors are available and can be installed or removed in the field without special tools. Covers and jacks may be ordered in different colors for color coded circuits.

Order jacks and covers separately.  Covers can be ordered assembled on special order. Snap-in terminals also available as special order.  For all special orders items, contact Switchcraft.


  • Number of Conductors: 3
  • Product Line: TT Jax
  • Mounting Type: Panel
  • Termination Style: Right Angle PC Mount
  • Contact Plating: Gold
  • Color: Black
  • Sealed: Not Sealed
  • Packaging Type: Bulk
  • Number of Stations: 1
  • Standard Connector Type: TT/Bantam Jacks & Plugs
  • Shunt: Shunted
  • Jack-Plug Type: Jack
  • PC Mount Style: Thru-Hole


  • Contact Resistance: 0.02 Ohms
  • Dielectric Withstanding Voltage: 500 Volts
  • Insulation Resistance: 10000000000 MOhms
  • Circuit-Schematic: Double Closed


  • Life Cycle: 10000 Cycles
  • Operating Force: 7 lbs


  • Temperature Range: -55C to +85C
  • Flame Rating: UL 94V-0
  • Humidity Rating: MIL-STD-202 Method 106
  • Salt Spray: MIL-STD-202 Method 101
  • Mechanical Shock: MIL-STD-202 Method 213
  • Vibration: MIL-STD-202 Method 201
  • Minimum Temperature: -55 C
  • Maxiumum Temperature: 85 C


  • RoHS Compliant: Compliant
  • REACH Compliant: Compliant
  • Brand: Switchcraft


  • Body Material: Thermoplastic
  • Contact Material: Gold Alloy
  • Spring Material: Copper Alloy
