CB Style Connectors

CB Style Connectors

product1
Miniature 3 and 4 circuit connectors for microphone connections in mobile/communications equipment. Cord plug has silver-plated copper alloy contacts, large cable clamp, and strain relief spring.




CB3F

  • 3-Contact female cord plug
  • Knurled coupling ring has internal metric M16x1 thread.
  • Solder lug terminals accept wires up to #18 AWG.
  • Accommodates cables up to .281" (7.14 mm) diameter.
  • Length 1.594" (40.49mm), diameter 0.703" (17.86mm)

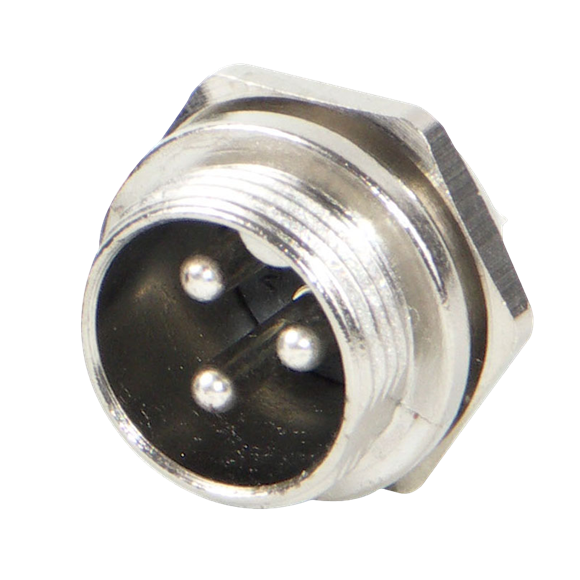

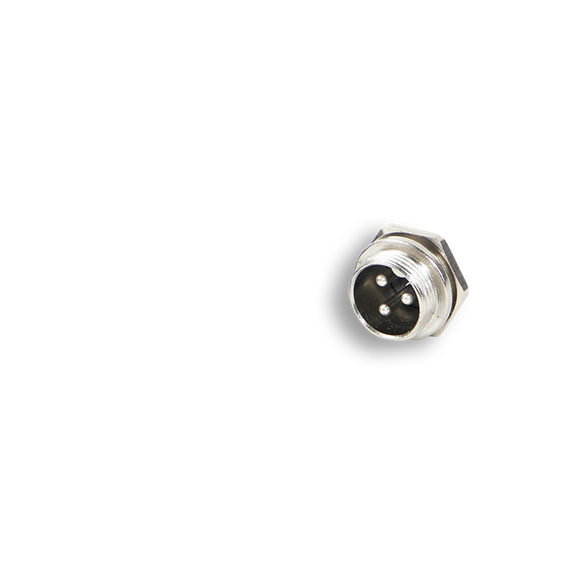

CB-3M

  • 3-pin male receptacle.
  • Housing keys insert of mating plug; bushing with external M16x1 metric thread mates with coupling ring on plug.
  • Cup-type terminals accept wires up to #16 AWG.
  • Mounts in .64" (16.26 mm) diameter hole from front of panels up to .125" (3.18 mm) thick, using washer and locknut supplied. Can also be D-hole mounted for non-turn mounting (see drawing).
  • Pin diameter. is .093"
  • Length 0.781" (19.84mm), Diameter 0.705" (19.05mm)

Configuration

  • Number of Conductors: 3
  • Termination Style: Solder Cup
  • Contact Plating: Silver
  • Color: Matte Nickel
  • Locking: Locking
  • Packaging Type: Bulk

Mechanical

  • Coupling Locking Style: Threaded

Environmental

  • Shielding: Shielded

Certification

  • RoHS Compliant: Compliant
  • REACH Compliant: Compliant
  • Brand: Switchcraft

Material

  • Contact Material: Copper Alloy

cb_connectors
Enlarge
cb_connectors
  • There are no alternate images available for this product.

  •
