Switchcraft

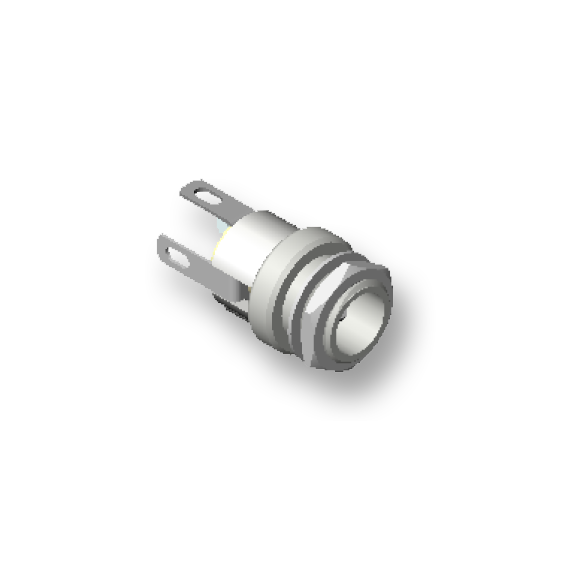

732AH

DC Power Jack, 0.050" (1.3mm) pin, solder lugs termination, High-Temp

In stock
Drawings:


Buy Now

View More From This Family

Configuration

  • Number of Conductors: 2
  • Product Line: Power Jax
  • Mounting Type: Panel
  • Termination Style: Solder
  • Contact Plating: Silver
  • High Temperature: High Temperature
  • Locking: Locking
  • Packaging Type: Bulk
  • Standard Connector Type: DC Barrel Connectors
  • Shunt: Shunted
  • Jack-Plug Type: Jack
  • Center Pin Size: 1.3 mm

Electrical

  • Contact Resistance: 0.01 Ohms
  • Dielectric Withstanding Voltage: 500 Volts
  • Insulation Resistance: 1000 MOhms
  • Voltage Rating: 24 Volts
  • Current Rating: 7.5 Amps
  • Circuit-Schematic: Single Closed

Mechanical

  • Life Cycle: 5000 Cycles
  • Operating Force: 3 lbs
  • Coupling Locking Style: Threaded

Environmental

  • Maxiumum Temperature: 105 C

Certification

  • RoHS Compliant: Compliant
  • REACH Compliant: Compliant
  • Brand: Switchcraft

Material

  • Contact Material: Copper Alloy
  • Terminal Material: Copper Alloy
