Switchcraft

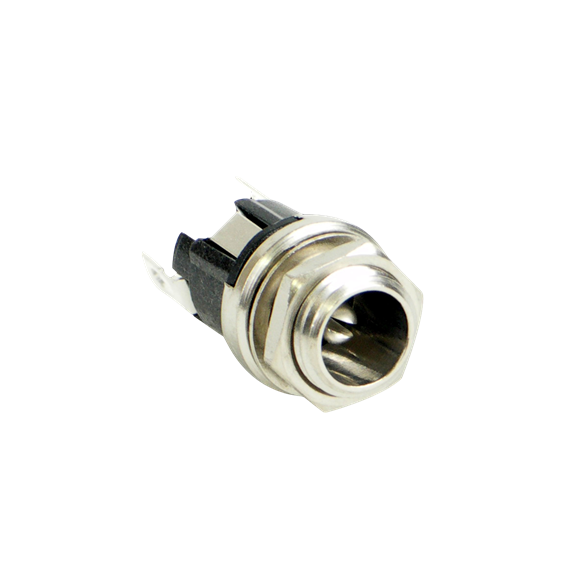

712A

DC Power Jack, 0.100" (2.5mm) pin, solder lugs termination

In stock
Drawings:


Buy Now

View More From This Family

Configuration

  • Number of Conductors: 2
  • Product Line: Power Jax
  • Mounting Type: Panel
  • Termination Style: Solder
  • Contact Plating: Silver
  • High Temperature: Standard Temperature
  • High Current: Standard Current
  • Locking: Locking
  • Sealed: Not Sealed
  • Packaging Type: Bulk
  • Standard Connector Type: DC Barrel Connectors
  • Shunt: Shunted
  • Jack-Plug Type: Jack
  • Center Pin Size: 2.5 mm

Electrical

  • Contact Resistance: 0.01 Ohms
  • Dielectric Withstanding Voltage: 500 Volts
  • Insulation Resistance: 10000 MOhms
  • Voltage Rating: 24 Volts
  • Current Rating: 5 Amps
  • Circuit-Schematic: Single Closed

Mechanical

  • Life Cycle: 10000 Cycles
  • Coupling Locking Style: Threaded
  • Mounting Torque: 10 in-lbs

Environmental

  • Temperature Range: -55?C to +85?C
  • Shielding: Unshielded
  • Minimum Temperature: -55 C
  • Maxiumum Temperature: 85 C

Compliance

  • RoHS Compliant: Compliant
  • REACH Compliant: Compliant
  • Brand: Switchcraft

Material

  • Body Material: Copper Alloy
  • Body Plating: Nickel
  • Contact Material: Copper Alloy
  • Contact Plating Type: Silver
  • Terminal Material: Copper Alloy
  • Sleeve Material: Copper Alloy
