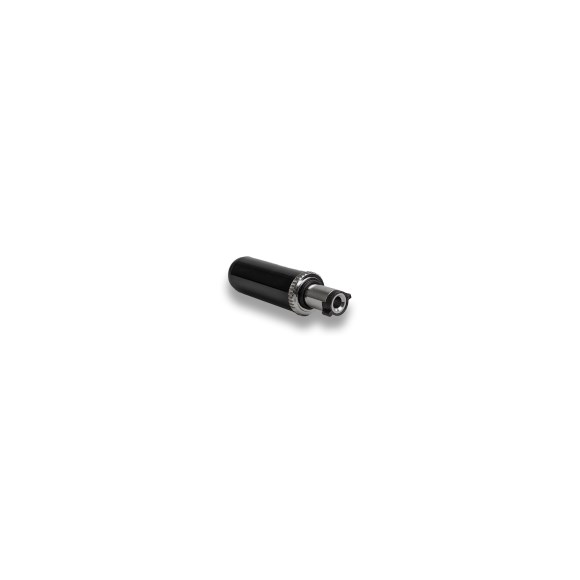

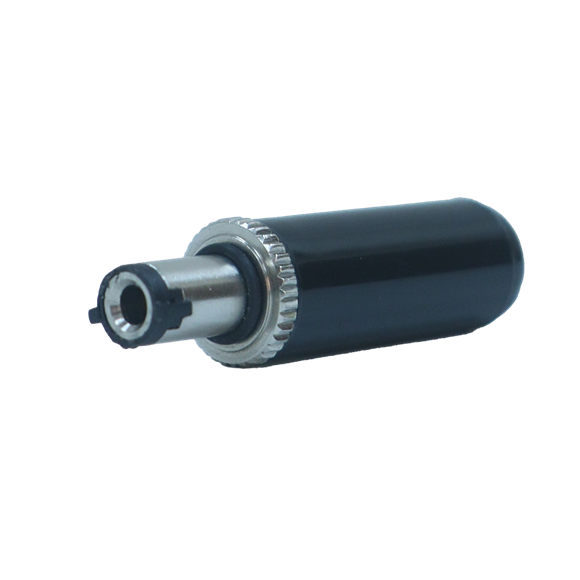

DC POWER PLUG, 0.100" (2.5mm) ID pin, 1.4" (36mm) overall length, black insulator tip, black handle, bayonet twist-lock

In stock
Drawings:


Buy Now

View More From This Family

Configuration

  • Number of Conductors: 2
  • Product Line: BKZ Series
  • Mounting Type: Cord
  • Termination Style: Solder
  • Contact Plating: Nickel
  • Color: Black
  • High Temperature: Standard Temperature
  • High Current: Standard Current
  • Locking: Locking
  • Sealed: Not Sealed
  • Handle Material: Thermoplastic
  • Packaging Type: Bulk
  • Standard Connector Type: DC Barrel Connectors
  • Jack-Plug Type: Plug
  • Center Pin Size: 2.5 mm

Electrical

  • Contact Resistance: 0.05 Ohms
  • Dielectric Withstanding Voltage: 250 Volts
  • Insulation Resistance: 100 MOhms
  • Voltage Rating: 24 Volts
  • Current Rating: 5 Amps

Mechanical

  • Life Cycle: 5000 Cycles
  • Coupling Locking Style: Bayonet

Environmental

  • Temperature Range: -30C to 65C
  • Shielding: Unshielded
  • Minimum Temperature: -30 C
  • Maxiumum Temperature: 65 C

Compliance

  • RoHS Compliant: Compliant
  • REACH Compliant: Compliant
  • Brand: Switchcraft

Dimensional

  • Cable Opening: 0.218 in

Material

  • Contact Material: Copper Alloy
  • Contact Plating Type: Nickel
  • Terminal Material: Copper Alloy
  • Sleeve Material: Copper Alloy
