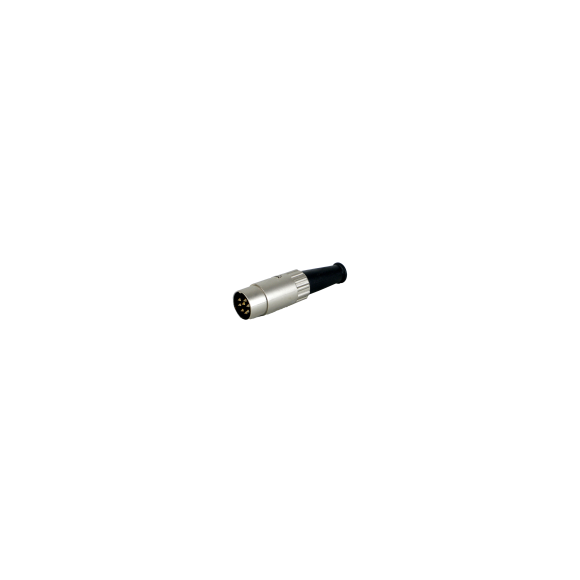

15bl8mx
Enlarge
15bl8mx
  • There are no alternate images available for this product.

  •
Switchcraft

15BL8MX

DIN Cable Mount Connector, male cord plug with ground key-rib, 8 pins at 270

In stock
Drawings:


Buy Now

View More From This Family

Configuration

  • Number of Conductors: 7
  • Mounting Type: Cord
  • Gender: Male
  • Contact Size: 22 AWG
  • Termination Style: Solder Cup
  • Contact Plating: Tin
  • Color: Nickel
  • Handle Material: Soft Plastic
  • Packaging Type: Bulk
  • Standard Connector Type: DIN
  • Special Feature: Ground Key-Rib

Electrical

  • Contact Resistance: 0.01 Ohms
  • Dielectric Withstanding Voltage: 500 Volts
  • Current Rating: 3 Amps

Mechanical

  • Operating Force: 12.6 lbs

Compliance

  • RoHS Compliant: Compliant
  • REACH Compliant: Compliant
  • Brand: Switchcraft

Dimensional

  • Cable Opening: 0.22 in
