Switchcraft

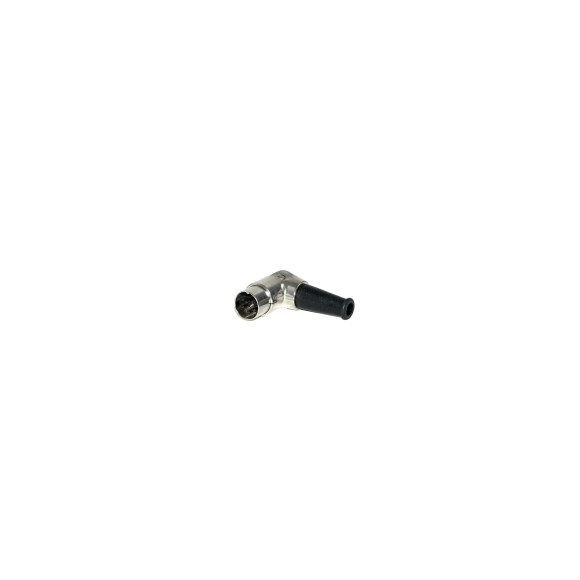

12DL5MX

DIN Cable Mount Connector, right angle male plug, black strain relief, 5 pins at 240

Out of stock
This item is special order
Drawings:


Buy Now

View More From This Family

Configuration

  • Number of Conductors: 5
  • Mounting Type: Right Angle Cord
  • Gender: Male
  • Contact Size: 22 AWG
  • Termination Style: Solder Cup
  • Contact Plating: Tin
  • Color: Black
  • Handle Material: Soft Plastic
  • Packaging Type: Bulk
  • Standard Connector Type: DIN

Electrical

  • Contact Resistance: 0.01 Ohms
  • Dielectric Withstanding Voltage: 500 Volts
  • Current Rating: 3 Amps

Mechanical

  • Operating Force: 9 lbs

Compliance

  • RoHS Compliant: Compliant
  • REACH Compliant: Compliant
  • Brand: Switchcraft

Dimensional

  • Cable Opening: 0.39 in
