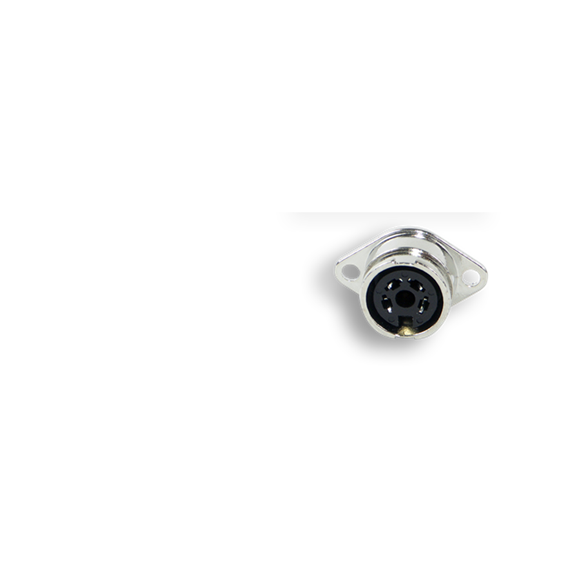

DIN Panel Mount

DIN Panel Mount

product1
3 to 8 pin DIN connectors which mount to PC boards. Plugs connect at right-angle to mounting surface. Shielded version has metal flange surrounding face of insert to provide through-grounding between plug and receptacle and to potential panel/chassis for common grounding. Male version features interlocking flanges for side-by-side row mounting.




ELECTRICAL

  • Contact Resistance:
    • Cord Plugs and Receptacles; .010 ohms, contact spring/pin  .030 ohms, ground clip/shell
    • Control and Switching Receptacles; .015 ohms, contact spring/pin; .020 ohms, switch contacts.
  • Dielectric Withstanding Voltage:  500 V (rms)
  • Contact Rating:  5-pin; 3A, 34 V DC
  • Leakage Resistance:  105M (ohm)
  • Recommended Wire Size:  22 wire gauge maximum

MECHANICAL

Insertion/Withdrawal Forces:
Number of Contacts Insertion Force
pound/N
Withdrawal Force
pound/N
2 3.6/(16) .45- 2.7/(2-12)
3 5.4/(24) .67- 4.1/(3-18)
4 7.2/(32) .90- 5.4/(4-24)
5 9.0/(40) 1.24- 6.8/(5.5-30)
6 10.8/(48) 1.46- 8.1/(6.5-36)
7 12.6/(56) 1.68- 9.5/(7.5-42)
8 14.4/(64) 1.90-10.8/(8.5-48)
NOTE: All connectors meet DIN specifications #41524. Din spec.
numbers (except for 4-pin, 5-pin @ 240, and 8-pin @ 262)

MATERIAL

  • Shell:  Die-cast zinc alloy, nickel-plated
  • Receptacle Mounting Flange:  Steel
  • Receptacle Body:  Plastic
  • Insert Material:  Plastic
  • Socket Contacts:  Tin-plated
  • Pin Contacts:  Tin-plated
  • Switching Contacts:  Silver-plated
  • Cable Relief Bushing: Soft plastic

Configuration

  • Mounting Type: Panel
  • Contact Size: 22 AWG
  • Contact Plating: Tin
  • Color: Nickel
  • Packaging Type: Bulk
  • Standard Connector Type: DIN

Electrical

  • Current Rating: 3 Amps

Certification

  • RoHS Compliant: Compliant
  • REACH Compliant: Compliant
  • Brand: Switchcraft

Material

  • Contact Material: Tin Plated

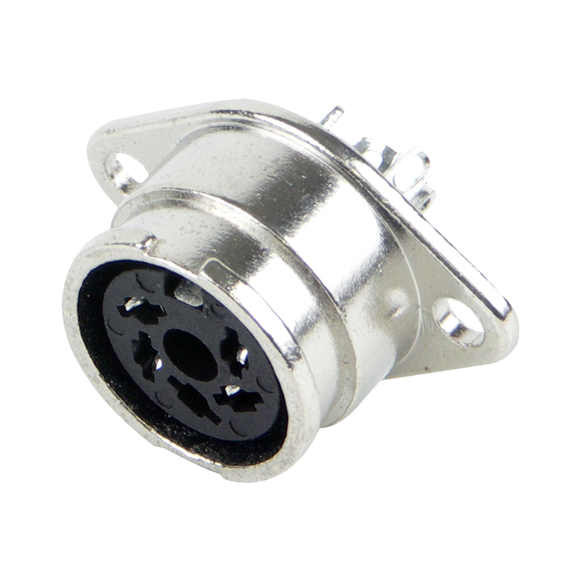

61ha5fx
Enlarge
61ha5fx
  • There are no alternate images available for this product.

  •
