Switchcraft

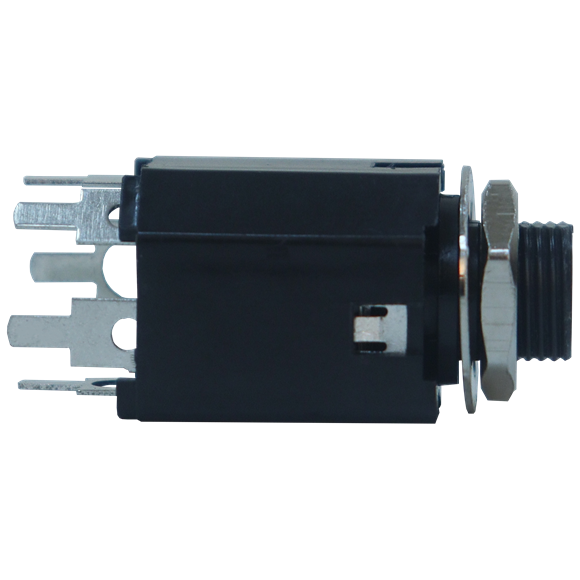

NL114BPCX

Double closed circuit, PC Terminals, 0.375" long insulated bushing

In stock
This item is special order
Drawings:


Buy Now

View More From This Family

Hi-D Jax enclosed 1/4" phone jacks are ideal for panel/chassis and PC board mounting. Unitized molded housing protects springs, provides mechanical and electrical reliability, minimizes leakage and provides low capacity between springs. Mounts on .625" minimum centers in rows or arrays. Insulated Hi-D Jax jacks are specifically designed for in-circuit (insulated) mounting from mounting surface and have fully protected enclosed internal sleeve feature.  Mount in a single .375" diameter hole.

Formed shoulders on each terminal provide stable stand-off mount. Threaded bushing permits mechanical connection to equipment panel. Mounting hardware is supplied.

Also available is a grounding spur bushing, which allows for positive grounding of the bushing to the chassis. Contact factory for details

Configuration

  • Number of Conductors: 3
  • Product Line: Littel Jacks
  • Mounting Type: Panel
  • Mounting Feature: Extended Insulated Bushing
  • Termination Style: PC Mount
  • Contact Plating: Tin
  • Locking: Locking
  • Sealed: Not Sealed
  • Packaging Type: Bulk
  • Standard Connector Type: 1/4" Phone Jacks & Plugs
  • Shunt: Shunted
  • Jack-Plug Type: Jack
  • PC Mount Style: Thru-Hole

Electrical

  • Contact Resistance: 0.02 Ohms
  • Dielectric Withstanding Voltage: 500 Volts
  • Insulation Resistance: 10000 MOhms
  • Circuit-Schematic: Double Closed

Mechanical

  • Life Cycle: 10000 Cycles
  • Operating Force: 2 lbs
  • Coupling Locking Style: Threaded
  • Panel Thickness: 0.156 in

Environmental

  • Temperature Range: -20C to +65C
  • Flame Rating: UL 94V-0
  • Humidity Rating: MIL-STD-202 Method 106
  • Salt Spray: MIL-STD-202 Method 101
  • Mechanical Shock: MIL-STD-202 Method 107
  • Minimum Temperature: -20 C
  • Maxiumum Temperature: 65 C

Compliance

  • RoHS Compliant: Compliant
  • REACH Compliant: Compliant
  • Brand: Switchcraft

Material

  • Body Material: Thermoplastic
  • Spring Material: Copper Alloy
  • Sleeve Material: Steel
