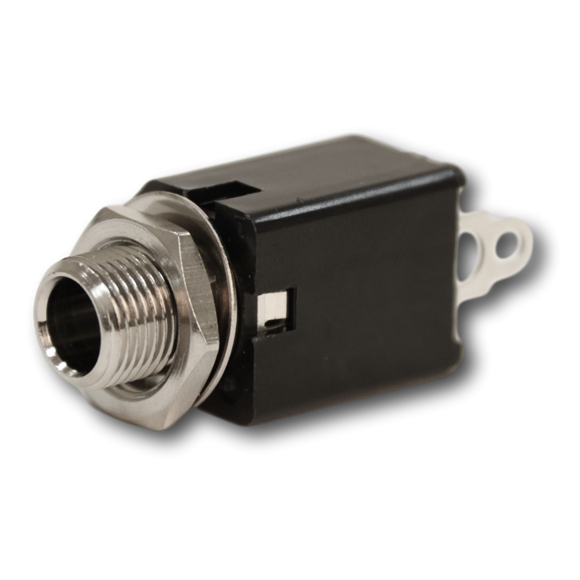

l112bx
Enlarge
l112bx
  • There are no alternate images available for this product.

  •
Switchcraft

L112BX

Double open circuit, solder lug termination, 0.375" long bushing

In stock
Drawings:


Buy Now

View More From This Family

Configuration

  • Number of Conductors: 3
  • Product Line: Littel Jacks
  • Mounting Type: Panel
  • Mounting Feature: Extended Bushing
  • Termination Style: Solder
  • Contact Plating: Tin
  • Locking: Locking
  • Packaging Type: Bulk
  • Standard Connector Type: 1/4" Phone Jacks & Plugs
  • Jack-Plug Type: Jack

Electrical

  • Contact Resistance: 0.02 Ohms
  • Dielectric Withstanding Voltage: 500 Volts
  • Insulation Resistance: 10000 MOhms
  • Circuit-Schematic: Double Open

Mechanical

  • Life Cycle: 10000 Cycles
  • Operating Force: 2 lbs
  • Coupling Locking Style: Threaded

Environmental

  • Flame Rating: UL 94V-0
  • Humidity Rating: MIL-STD-202 Method 106
  • Salt Spray: MIL-STD-202 Method 101
  • Mechanical Shock: MIL-STD-202 Method 107
  • Maxiumum Temperature: 85 C

Certification

  • RoHS Compliant: Compliant
  • REACH Compliant: Compliant
  • Brand: Switchcraft

Material

  • Spring Material: Copper Alloy
  • Sleeve Material: Steel
