Switchcraft

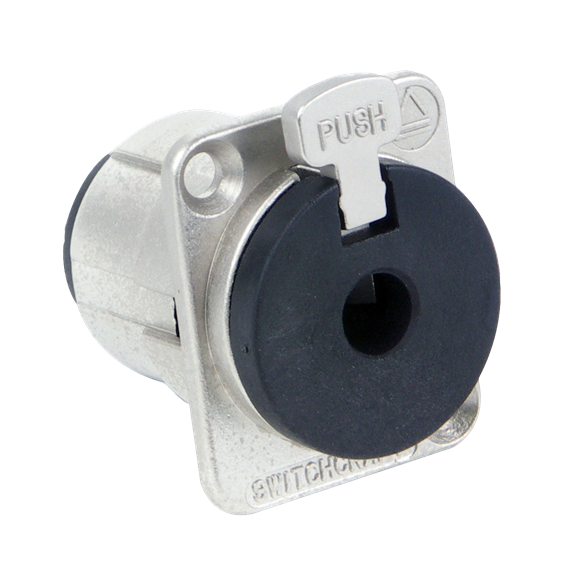

E111L

E Series 1/4" / 2 Conductor Mono Locking Jack, Nickel Finish

In stock
Drawings:


Buy Now

View More From This Family

Configuration

  • Number of Conductors: 2
  • Product Line: Littel Jacks
  • Mounting Type: Panel
  • Mounting Feature: E/EH Size Housing
  • Termination Style: Solder Cup
  • Contact Plating: Tin
  • Color: Nickel
  • Locking: Locking
  • Packaging Type: Bulk
  • Standard Connector Type: 1/4" Phone Jacks & Plugs
  • Jack-Plug Type: Jack

Electrical

  • Dielectric Withstanding Voltage: 1000 Volts
  • Insulation Resistance: 2.00E+06 MOhms
  • Circuit-Schematic: Single Open

Mechanical

  • Life Cycle: 10000 Cycles
  • Coupling Locking Style: Button Latch

Environmental

  • Flame Rating: UL 94V-0
  • Humidity Rating: MIL-STD-202 Method 106
  • Salt Spray: MIL-STD-202 Method 101
  • Mechanical Shock: MIL-STD-202 Method 107
  • Maxiumum Temperature: 85 C

Certification

  • RoHS Compliant: Compliant
  • REACH Compliant: Compliant
  • Brand: Switchcraft

Material

  • Insert Material Type: Thermoplastic
  • Spring Material: Copper Alloy Tin-Plated
