Switchcraft

EH35MMSNSCB

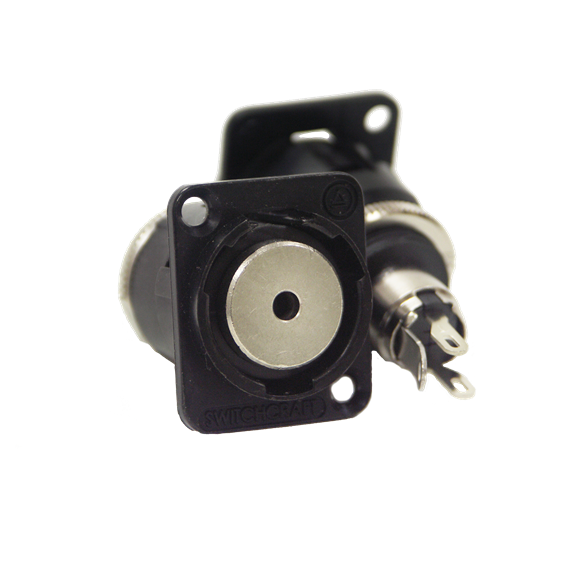

EH Series 3.5MM, 3 Conductor Jack To Solder Contacts (double closed circuit) - Black Finish

In stock

Drawings:

View More From This Family

Specifications
Videos
Documents

Configuration

Number of Conductors: 3
Product Line: EH Series
Mounting Type: Panel
Termination Style: Solder Cup
Color: Black
Packaging Type: Bulk
Standard Connector Type: 3.5mm Jacks & Plugs

Electrical

Circuit-Schematic: Double Closed

Compliance

RoHS Compliant: Compliant
REACH Compliant: Compliant
Brand: Switchcraft

download pdf

EH Series New Product Bulletin

download pdf

EH Series Diecast RJ45 Connectors Product Bulletin
