Switchcraft

CUSTOM EN3 CABLES

EN3 Series Custom Factory Molded Cable Assemblies

EN3 Series factory molded cables, built to fit your project requirements.



Request a Quote

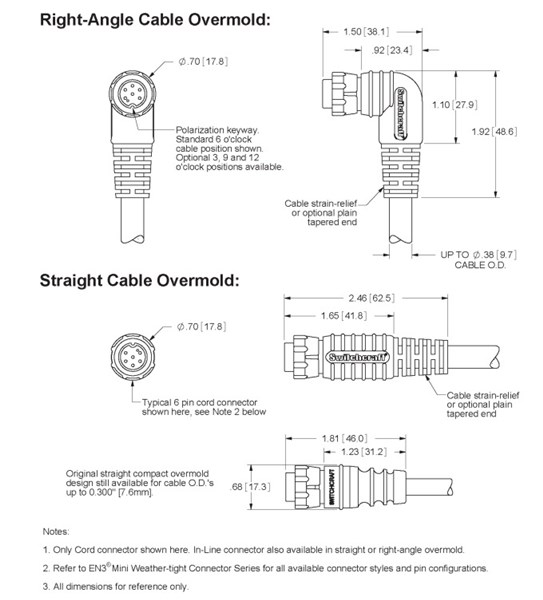

EN3_Cables_Dimensions_v1

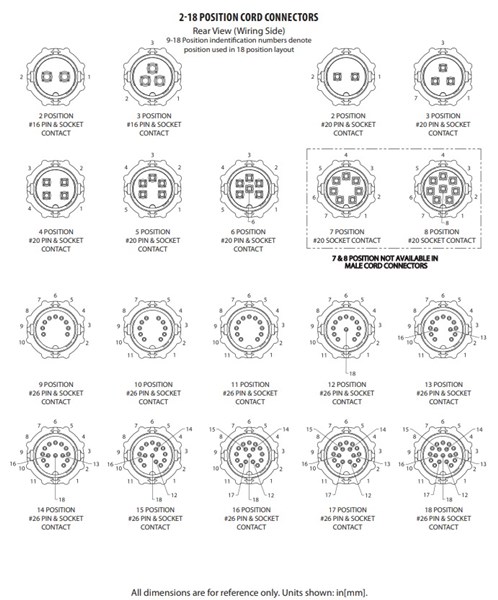

EN3_Cables_Contacts_v1

EN3 Series connectors are trusted by customers all over the world. Factory molded cable assemblies are made in the same Switchcraft factory in Chicago and are a great way to maximize the performance and durability of your cables. Utilizing an integral O-Ring/gasket, EN3 custom cable assemblies are available in 2-18 pins/sockets in the same housing size and come in a variety of mold options such as straight with and without strain relief, right angle with strain relief and quick disconnect with strain relief. Exceeds enclosure rating IP66/IP68 and NEMA 250 when mated or covered. Switchcraft has knowledgeable engineers ready to help you develop a custom cable to meet your requirements.

Certification

  • Brand: Switchcraft
