European Line Voltage Selector Switch

European Line Voltage Selector Switch

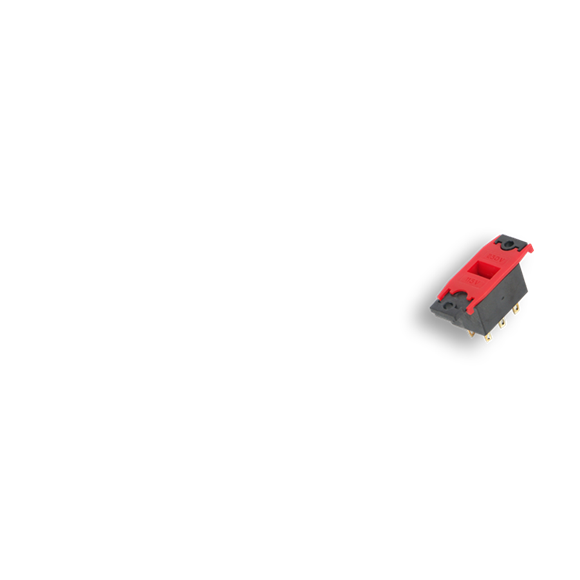

product1
European Power Selector Switches are designed for quick, easy programming/selection of 115V-230V primary power. These switches provide engineers with an excellent selection of PC and solder lug terminals and ratings up to 10A, 125V AC rating for electrical/electronic equipment and systems headed for the international marketplace.




SPECIFICATIONS

Contact Ratings: EPS1, EPS2 - 2A, 250V AC and 4A, 125V AC. EPS3, EPS4 - UL and CSA - 10.1A, 125V; 5A, 250V.

Listings: UL and CSA recognized, UL card E40668; CSA card 28260.

Housing: Molded black glass-reinforced plastic.

Actuator and Cover: Molded thermoplastic.

Terminals: Copper alloy, silver-plated.

Slider Contacts: EPS1, EPS2 - Bi-Metal, silver on copper alloy. EPS3, EPS4 - Copper alloy with silver cadmium oxide inlay.

Temperature Range: -4F to +158F (-20C to +70C).

Dielectric Strength: 2kV rms @ sea level.

Insulation Resistance: 1 k M(omega) minimum.

SPECIAL ORDER FEATURES

Series EPS actuators having legends other than 115V and 230V are available on special order.

NOTE: Contact Switchcraft for details.

PART NUMBERS
Series EPS1
Part Number Terminals Dimension "B" Inch (mm) Schematic
EPS1PC3 Right-Angle PC - 2-III
EPS1SL1 Solder Lugs - 2-III
Special order only; contact Switchcraft.

Series EPS2
Part Number Description Dimension "B" Inch (mm) Schematic
EPS2PC1 Straight PC .730 (18.542) 2-III
EPS2PC3 Right-Angle PC - 2-III

Series EPS3
Part Number Terminals Dimension "B" Inch (mm) Schematic
EPS3PC1 Straight PC .681 (17.297) 2-III
EPS3PC2 Straight PC .719 (18.263) 2-III
EPS3PC3 Right-Angle PC - 2-III
EPS3SL1 Solder Lugs - 2-III

Series EPS4
Part Number Description Dime

Configuration

  • Number of Conductors: 6
  • Mounting Type: Panel
  • Contact Plating: Silver
  • Locking: Locking
  • Packaging Type: Bulk

Electrical

  • Dielectric Withstanding Voltage: 2000 Volts
  • Insulation Resistance: 1000 MOhms
  • Voltage Rating: 125 Volts
  • Circuit-Schematic: Double Closed

Environmental

  • Temperature Range: -20C to +70C
  • Maxiumum Temperature: 70 C

Certification

  • RoHS Compliant: Compliant
  • CSA: 1
  • UL: 1
  • REACH Compliant: Compliant
  • Brand: Switchcraft

Material

  • Body Material: Copper Alloy
  • Body Plating: Silver
  • Terminal Material: Copper Alloy Silver-Plated

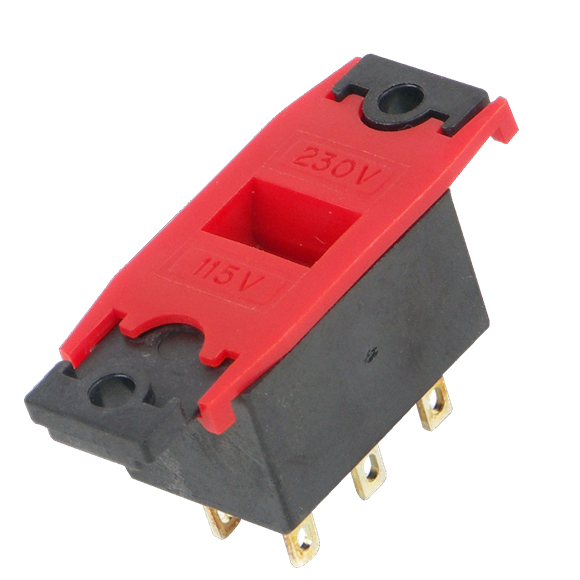

european_line_voltage_selector_switch
