Switchcraft

RASSM10P

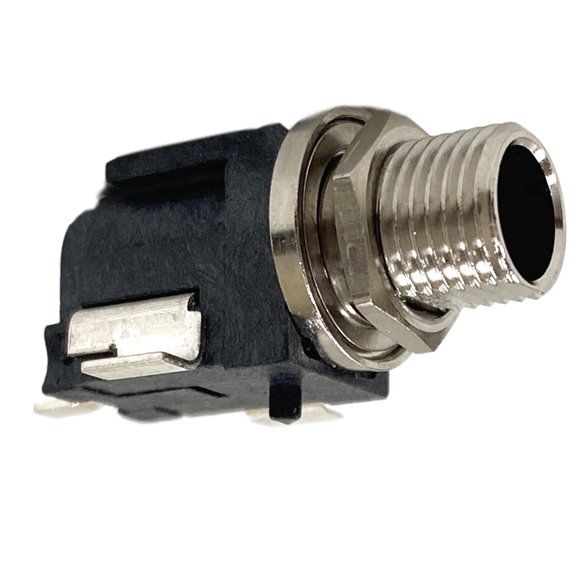

High Amperage Power Jack, Tin Terminal Plating, Surface Mount Hole Termination, with Locating Post

In stock
Drawings:


Buy Now

View More From This Family

Configuration

  • Number of Conductors: 2
  • Product Line: High Amperage
  • Mounting Type: Panel
  • Mounting Feature: Locating Post
  • Termination Style: Right Angle PC Mount
  • Contact Plating: Tin
  • High Current: 1
  • Locking: Locking
  • Sealed: Not Sealed
  • Packaging Type: Bulk
  • Shunt: 1
  • Jack-Plug Type: Jack
  • PC Mount Style: Surface Mount
  • Center Pin Size: 2 mm

Electrical

  • Contact Resistance: 0.015 Ohms
  • Insulation Resistance: 1000 MOhms
  • Voltage Rating: 24 Volts
  • Current Rating: 11 Amps
  • Circuit-Schematic: Single Closed

Mechanical

  • Life Cycle: 5000 Cycles
  • Operating Force: 5 lbs
  • Coupling Locking Style: Threaded
  • Mounting Torque: 10 in-lbs

Environmental

  • Temperature Range: -40C to +105C
  • Moisture Resistance: MIL-STD-202G Method 106G
  • Salt Spray: MIL-STD-202G Method 101E Test Cond B
  • Mechanical Shock: MIL-STD-202G Method 107G
  • Vibration: Mil-Std 202G Method 201A
  • Maxiumum Temperature: 105 C

Certification

  • RoHS Compliant: 1
  • REACH Compliant: 1
  • Brand: Switchcraft
  • Touch Proof: 1

Dimensional

  • Inner Diameter: 0.08 in

Material

  • Contact Material: Copper Alloy
  • Contact Plating Type: Nickel
  • Terminal Material: Copper Alloy
