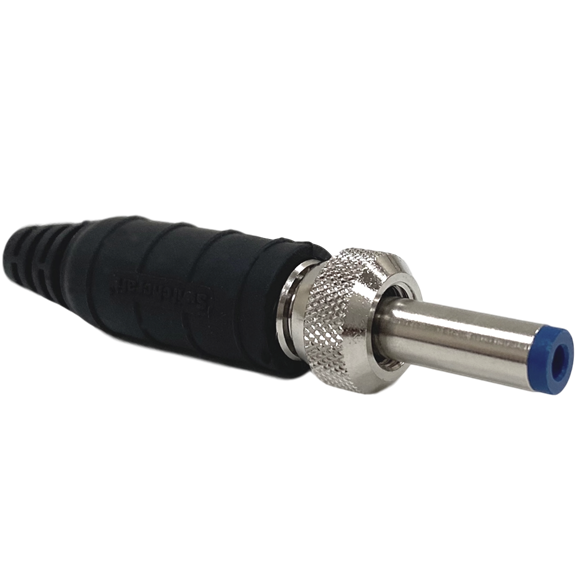

S10KS15

Configuration

• Number of Conductors: 2
• Product Line: High Amperage
• Mounting Type: Cord
• Termination Style: Solder
• Contact Plating: Silver
• Color: Blue
• High Temperature: High Temperature
• High Current: High Current
• Locking: Locking
• Sealed: Sealed
• Handle Material: Rubber Overmolded Thermoplastic
• Packaging Type: Bulk
• Jack-Plug Type: Plug
• Center Pin Size: 2 mm

Electrical

• Contact Resistance: 0.015 Ohms
• Dielectric Withstanding Voltage: 250 Volts
• Insulation Resistance: 1000 MOhms
• Voltage Rating: 24 Volts
• Current Rating: 11 Amps

Mechanical

• Life Cycle: 5000 Cycles
• Operating Force: 5 lbs
• Coupling Locking Style: Threaded
• Mounting Torque: 10 in-lbs

Environmental

• Temperature Range: -40?C to +105?C
• Shielding: Unshielded
• Moisture Resistance: MIL-STD-202G Method 106G
• Salt Spray: MIL-STD-202G Method 101E Test Cond B
• Mechanical Shock: MIL-STD-202G Method 107G
• Vibration: Mil-Std 202G Method 201A
• Minimum Temperature: -40 C
• Maxiumum Temperature: 105 C

Compliance

• RoHS Compliant: Compliant
• REACH Compliant: Compliant
• Brand: Switchcraft
• Touch Proof: Touch Proof
• IP Rating: IP68
• IP65: 1
• IP66: 1
• IP67: 1
• IP68: 1

Dimensional

• Inner Diameter: 0.08 in
• Cable Opening: 0.175 in

Material

• Contact Material: Copper Alloy
• Contact Plating Type: Silver
• Terminal Material: Copper Alloy
• O-Ring Material: Elastomer
