Switchcraft

HPCP410F1

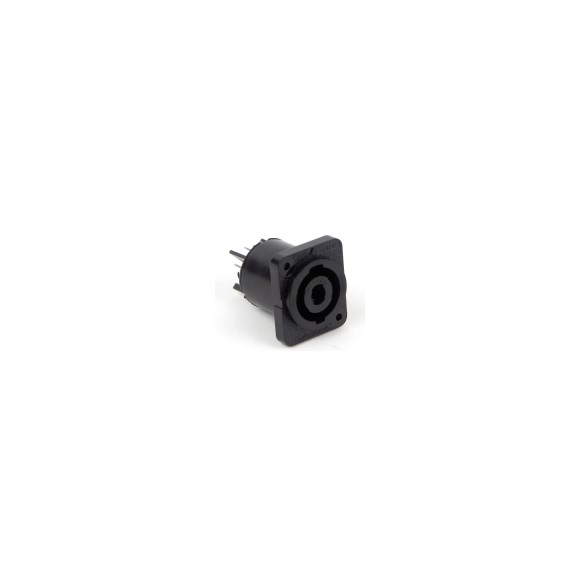

HPC Loudspeaker, Panel Mount Connector, .1" recessed flange, .093" dia. hole, Faston 0.187" termination

In stock
This item is special order


Buy Now

View More From This Family

Configuration

  • Number of Conductors: 4
  • Product Line: HPC Series
  • Mounting Type: Panel
  • Mounting Feature: Rectangular
  • Gender: Female
  • Termination Style: Faston
  • Contact Plating: Silver
  • Color: Black
  • Locking: Locking
  • Handle Material: Thermoplastic
  • Low Profile: Low Profile
  • Packaging Type: Bulk
  • Standard Connector Type: Speakon-style
  • Special Feature: .93" Mounting holes

Electrical

  • Contact Resistance: 0.01 Ohms
  • Insulation Resistance: 2000 MOhms
  • Voltage Rating: 1500 Volts
  • Current Rating: 30 Amps

Mechanical

  • Life Cycle: 1000 Cycles
  • Coupling Locking Style: Button Latch

Environmental

  • Flame Rating: UL 94V-0
  • Moisture Resistance: MIL-STD-202 Method 106
  • Salt Spray: MIL-STD-202 Method 101D Test Cond B
  • Mechanical Shock: MIL-STD-202 Method 213B Test Cond K
  • Vibration: MIL-STD-202 Method 201A
  • Maxiumum Temperature: 85 C

Compliance

  • RoHS Compliant: Compliant
  • REACH Compliant: Compliant
  • Brand: Switchcraft

Material

  • Contact Material: Copper Alloy
