IEC 320 Power Inlet

IEC 320 Power Inlet

product1
IEC320 inlet developed as a low power interconnect used in a variety of applictions. The RAPC322 is molded from 94-VO rated material, is UL recognized, and meets CSA approval. The RAPC is rated at 2.5A at 250V. Applications for the RAPC322 include notebook computers, medical devices, and data communications products.




General

  • Current Rating: 5A, UL and CSA 2.5A
  • Nominal Voltage: 250V
  • Temperature Range: - 55C to 65C
  • Dielectric Strength: 2000V @ 1 minute

Materials

  • Housing: Black, molded thermoplastic, UL 94V-0
  • Male Pins: Copper alloy, nickel plated
  • PC Terminals: Copper alloy, tin plated

Configuration

  • Number of Conductors: 2
  • Mounting Type: Panel
  • Gender: Male
  • Termination Style: Right Angle PC Mount
  • Contact Plating: Nickel
  • Color: Black
  • Packaging Type: Bulk
  • Standard Connector Type: IEC 320
  • PC Mount Style: Thru-Hole

Electrical

  • Voltage Rating: 250 Volts
  • Current Rating: 3 Amps
  • Dielectric Strength: 2000 V/m

Environmental

  • Temperature Range: -55C to +65C
  • Flame Rating: UL 94V-0
  • Maxiumum Temperature: 65 C

Compliance

  • RoHS Compliant: Compliant
  • CSA: 1
  • UL: 1
  • REACH Compliant: Compliant
  • Brand: Switchcraft

Material

  • Contact Material: Copper Alloy
  • Terminal Material: Copper Alloy Tin-Plated

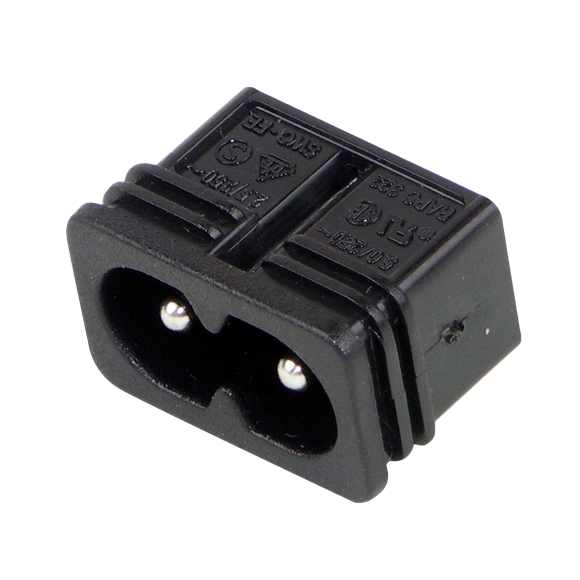

iec_320_power_inlet
