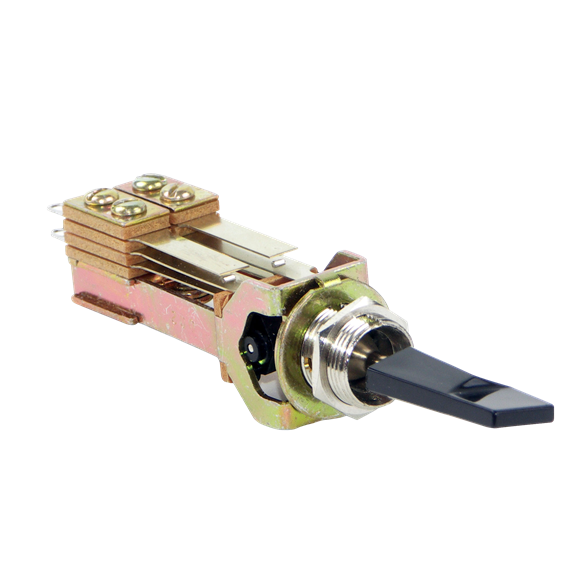

Frame: Steel, plated.
Bushing and Actuator: Copper alloy, plated.
Springs: Copper alloy.
Contact Ratings: Welded cross bar palladium contacts rated at 2A, 200W maximum, AC non-inductive load are standard. See "SPECIAL ORDER FEATURES" below.
Terminals: Tin dipped solder lugs.
Mounting Hardware: Supplied with one copper alloy-plated hex locknut (P10531); and one non-turn washer (P10639).
Insulation: Rigid plastic spacers with plastic tubing through the stack assembly. Lifters of thermoplastic.
Lifter-Roller Assembly: Molded plastic.
Knob: Supplied with a paddle style, screw-on black plastic knob. See "SPECIAL ORDER FEATURES" below.
Temperature Range: -22F to 158F (-30C to +70C).
Leakage Resistance: 1,000 M(omega) or greater.
MOLDED DUST COVERS
Dust cover is an environment and electrical shield, protecting and improving appearance and increasing switch dependability. Covers enshroud complete switch, preventing build-up of dust, dirt, contamination.
SPECIAL ORDER FEATURES
1. Talk-Listen (Intercom) function.
2. Fine silver and other alloys available for contacts.
3. Colored knobs are available.
4. UL recognized switches.
2 POSITION NON-LOCKING*
|Part Numbers ||Switching ||Stack Heights Dimension "X" max.|
|41203 ||1-C ||.531 (13.49)|
|41206 ||2-C ||.531 (13.49)|
|3 POSITION NON-LOCKING*|
| ||Position 1 ||Position 2 ||Dim. "Y" ||Dim. "X"|
|41312 ||2-C ||2-C ||.531 (13.49) ||.531 (13.49)|
|41324 ||4-C ||4-C ||.750 (19.05) ||.750 (19.05)|
|*Add suffix "L" to part number for locking type.|
To avoid ordering special switches, order a larger standard circuit, providing the circuit
meets your requirements.
Special order only; contact Switchcraft
