M12

Standard Panel Mounts

• 22 AWG, 80C, 300V, PVC Hook-up Wire
• Nylon Insert
• Lead Length 12 In.
• Epoxy Filled

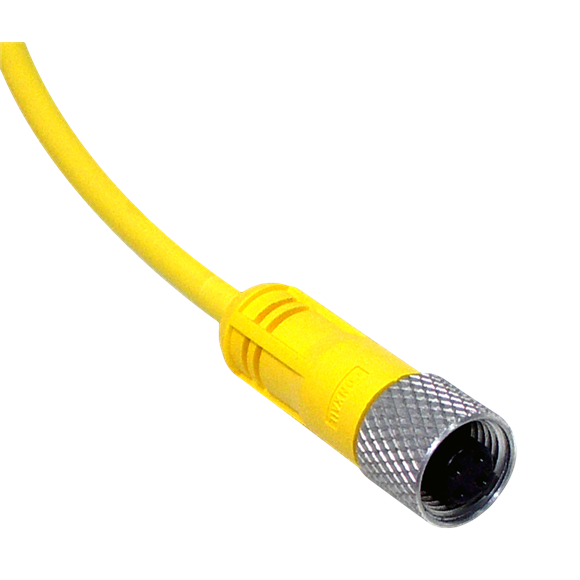

Standard AC & DC Metal

• 22 AWG, PVC Yellow Jacketed Cable
• Nylon Insert (Black for AC, Yellow for DC)
• PVC, Yellow Overmold
• Length 3, 6 and 12 Ft. for AC - 1, 2 and 4 Meters for DC
• Options
• 22 AWG, Polyurethane Yellow Jacketed Cable. For polyurethane cable add suffix "U"
• 22 AWG, PVC & Polyurethane Yellow Jacketed Shielded Cable. For Shielded Cable add suffix "S"
• Lengths other than standard

Standard Single Key Plastic

• 22 AWG, PVC Yellow Jacketed Cable
• Nylon Black Insert
• PVC, Black Overmold
• Length 1, 2 and 4 Meters
• Options
• 22 AWG, Polyurethane Yellow Jacketed Cable. For polyurethane cable add suffix "U"
• 22 AWG, PVC & Polyurethane Yellow Jacketed Shielded Cable. For Shielded Cable add suffix "S"
• Lengths other than standard

Y-Splitter Assemblies

• 22 AWG, PVC Yellow Jacketed Cable
• Nylon Insert
• PVC Overmold
• Options
• 22 AWG, Polyurethane Yellow Jacketed Cable

DC LED Cordsets

• 1 Green & 1 Yellow Extended Life LEDs (Typical life @ ambient temperature is 100,000 hours)
• PNP or NPN
• 22 AWG, PVC Yellow Jacketed Cable
• Nylon  Insert
• PVC, Clear Overmold
• Options
• 22 AWG, Polyurethane Yellow Jacketed Cable
• Polyurethane, Clear Overmold

Electrical Rating

• Voltage:
• Metal/Plastic (non-LED Assemblies) - 300V
• Metal (LED Assemblies) - 10-30V DC

Cable Assemblies

• Coupling Nut:
• Metal - Anodized Aluminum
• Plastic - Nylon
• Optional - Nickel-plated Brass or Stainless Steel (Consult Factory)
• Contacts:  Metal/Plastic - Copper Alloy, Gold-plated
• Insert:  Metal/Plastic - Nylon
• Molded Heads:  Metal/Plastic - PVC
• O-Rings:  Metal/Plastic - Viton
• Cable:  Metal/Plastic - 22 AWG, PVC Insulated, Fine Stranded Copper Conductors, Yellow Oil Resistant PVC Jacketed 300V, ST,  105C.  UL Recognized, CSA Certified

Panel Mount Assemblies

• Shells:
• Metal - Anodized Aluminum
• Plastic - Nylon
• Optional - Nickel-plated Brass (Consult Factory)
• Contacts:  Metal/Plastic - Copper Alloy, Gold-plated
• Inserts:  Metal - Nylon
• Wire:  Metal/Plastic - 22 AWG, PVC Insulated, 300V, UL Recognized, CSA Certified

Environmental

• Protection:  Metal/Plastic - NEMA 6P, IP67 & IP68
• Operating Ambient:  Metal/Plastic - -20 to 80C

Certifications

• UL:  Metal/Plastic - UL Recognized - File No. E150822 (2A, 125V)
• cUL:  Metal/Plastic - Canadian UL Recognized - File No. E150822
• CSA:  Metal/Plastic - CSA Certified  - File No. 181200
