Conxall

CUSTOM MEGA-CON-X CABLES

Mega-Con-X Series Custom Factory Molded Cable Assemblies

Our largest connectors accomodate up to 31 #20 contacts. Factory overmolded cables are designed to meet your requirements, with straight or right angle options.



Request a Quote

Key Features



icon_IP67_blue

The Con-X series is sealed to IP67 for harsh environments when used with a molded cable assembly

icon_600V_blue

600V voltage rating makes it an ideal solution for power or signal

icon_madeinUSA_blue

Made in USA to the high standards that have made Conxall the leading name in harsh environment connectors

Mega-Con-X Series connectors are trusted by customers all over the world. Factory molded cable assemblies are made in the same Switchcraft factory in Chicago and are a great way to maximize the performance and durability of your cables. Utilizing a separate o-ring, Mega Con X connectors are available up to 31-#20 pins/sockets. Can be ordered with quick connect type or threaded type coupling. Meets NEMA 6P when mated. Conxall has knowledgeable engineers ready to help you develop a custom cable to meet your requirements.

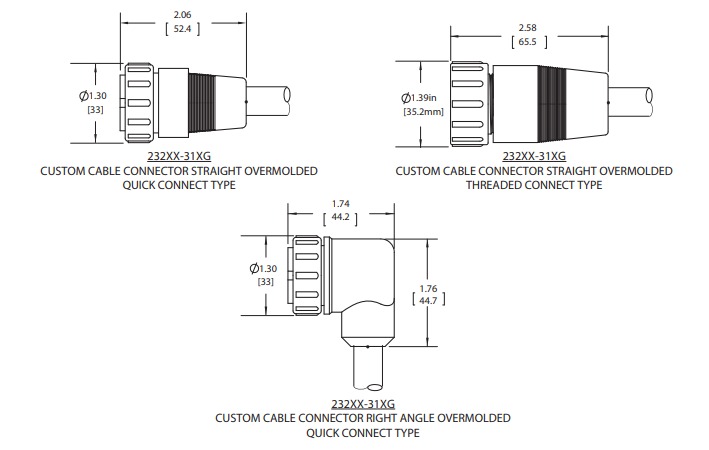

Mega_Mold_Dims

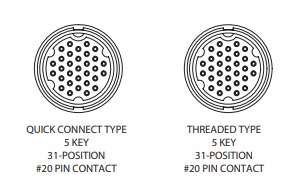

Mega_Contacts

Compliance

  • Brand: Conxall
