Switchcraft introduces the MMVP Series of high density, high definition video patchbays. The design of our micro video jack allows for 48 channels / 96 patchpoints in a 1RU, 19 rack. All Micro Video Patchbays meet SMPTE 424M specifications utilizing industry standard DIN 1.0 / 2.3 rear terminations.






Switchcraft introduces the MMVP Series of high density, high definition video patchbays. The design of our micro video jack allows for 48 channels / 96 patchpoints in a 1RU, 19 rack.



All Micro Video Patchbays meet SMPTE 424M specifications utilizing industry standard DIN 1.0 / 2.3 rear terminations.



Built by hand in Chicago, USA.




Features and Benefits


Rated at 3GHz - meets  SMPTE 424M specifications for HD patching
DIN 1.0 / 2.3 rear termination
Screw in jack design withstands vibration in mobile applications
Based on the proven, reliable patented technology of our MVJ Series of HD video jacks
Avalable in 75 Ohm terminated, non-terminated, normalled and non-normalled
Available in 1RU (2x48), 1.5RU (2x48 or 4x48), and 2RU (2x48 or 4x48)


Configuration

  • Color: Black
  • Packaging Type: Box
  • Standard Connector Type: Micro Video
  • Video Type: HD
  • Front Connector: Micro Video
  • Rear Connector: DIN 1.0/2.3

Certification

  • RoHS Compliant: Compliant
  • REACH Compliant: Compliant
  • Brand: Switchcraft

Material

  • Frame Material: Aluminum

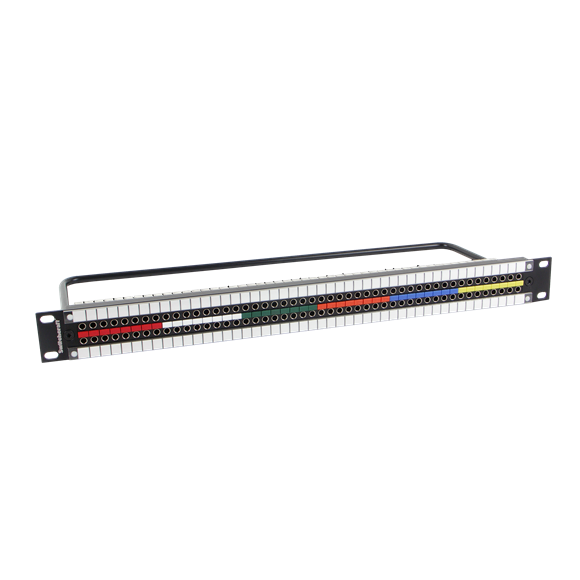

mmvp_1ru_with_color_chips
