PCB Mount Data Connectors

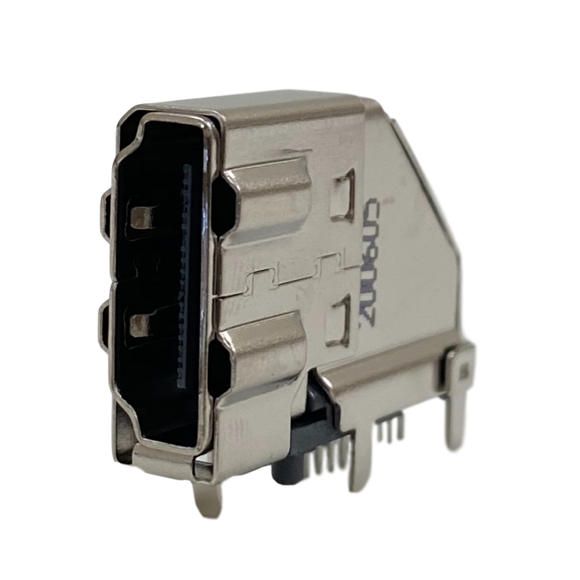

New HDMI connectors from Switchcraft offer reliable quality in 4 versatile designs. Compatible with standard HDMI Type A connectors, these receptacles feature premium materials and a robust design, while unique vertical mount styles provide space savings to solve common design challenges. Item RAVHD19ETR offers extra RF/EMI protection and a minimum of 10,000 insertion withdrawal cycles for the most critical applications.
Key Features
![](/assets/1/6/icon3.jpg)
![icon_options_blue](/assets/1/6/MainFCKEditorDimension/icon_options_blue.png)
4 designs, including vertical mount, an optional mounting flange, and an option for extra RF/EMI protection, offer solutions to many common design challenges
![](/assets/1/6/icon3.jpg)
![icon_compatible_blue](/assets/1/6/MainFCKEditorDimension/icon_compatible_blue.png)
These connectors are packaged on tape & reel or in pick and place trays for easy installation and work as replacements for some commonly used connectors
![](/assets/1/6/icon3.jpg)
![icon_switchcraft_blue](/assets/1/6/MainFCKEditorDimension/icon_switchcraft_blue.png)
Switchcraft HDMI connectors are built to the highest quality standards, use premium materials, and meet all applicable HDMI v2.0 specifications
Configuration
-
Number of Conductors:
19
-
Mounting Type:
Panel
-
Termination Style:
Right Angle PC Mount
-
Contact Plating:
Gold
-
Color:
Nickel
-
Packaging Type:
Tape & Reel
-
Standard Connector Type:
HDMI
-
PC Mount Style:
Thru-Hole
Electrical
Compliance
-
RoHS Compliant:
Compliant
-
REACH Compliant:
Compliant
-
Brand:
Switchcraft
