Shielded Mini Con-X 0.760" OD

Shielded Mini Con-X® 0.760" OD
Home>Browse by Category>Connectors>Harsh Environment Connectors>Sealed Circular Connectors>Shielded Mini Con-X® 0.760" OD

product1

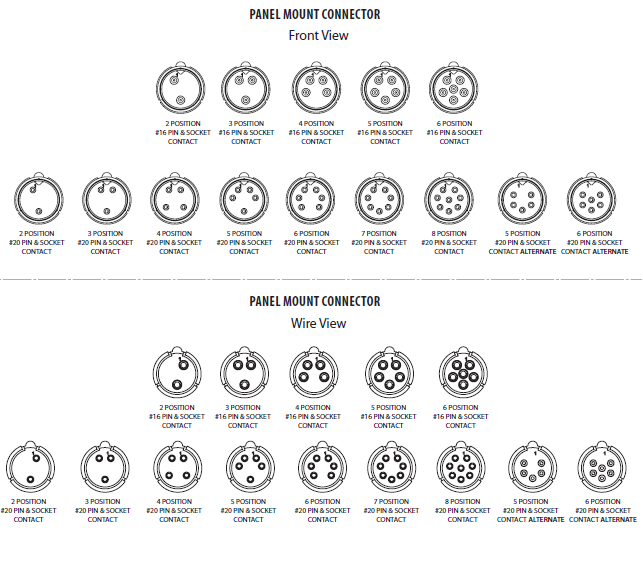

Rugged metal field installable, EMI/RFI Shielded Mini Con X connectors are available up to 6-#16 pins/sockets and 8-#20 pins/sockets. Meets IP66/IP68 when mated.




Configuration

  • Product Line: Mini-Con-X
  • Contact Plating: Gold
  • Insert Material: F1 Rated UV Resistance

Mechanical

  • Coupling Locking Style: Threaded

Environmental

  • Shielding: Shielded

Compliance

  • RoHS Compliant: Compliant
  • REACH Compliant: Compliant
  • Brand: Switchcraft
  • IP Rating: IP67 IP68

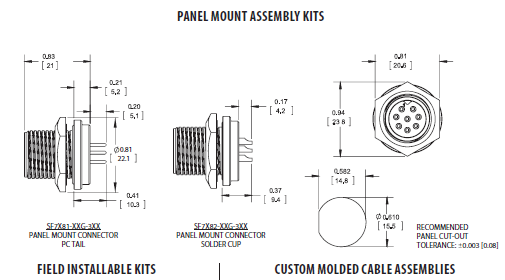

Dimensional

  • Diameter: 0.76 in

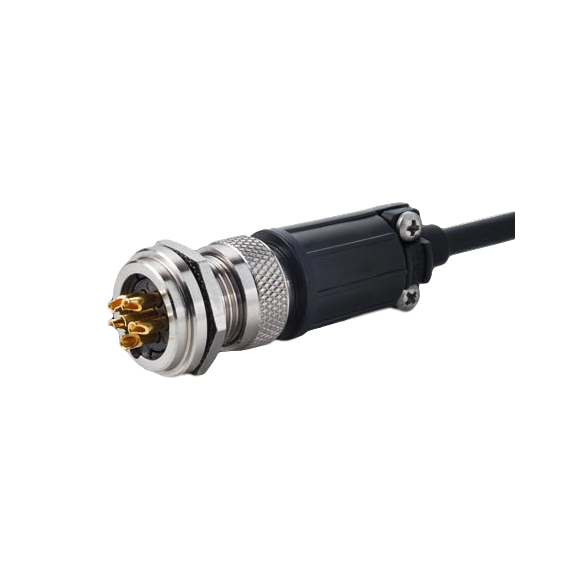

Shielded_Mini-ConX_008
Enlarge
Shielded_Mini-ConX_008

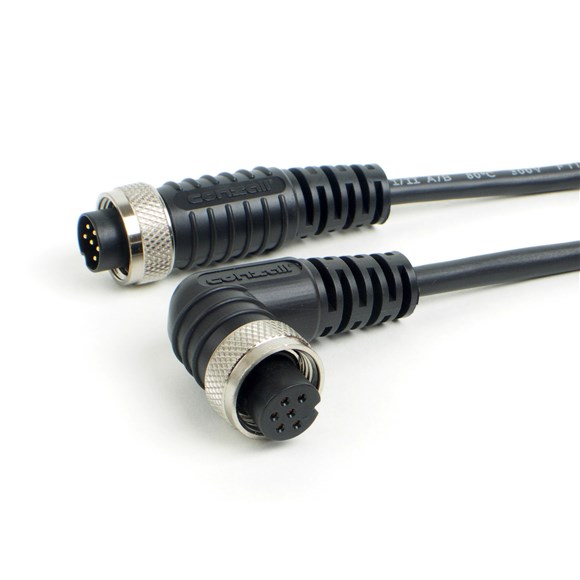

  • Shielded_Mini_Overmolds2
  • Shielded_Mini-ConX_008

  • Shielded_Mini_Overmolds2
  • Shielded_Mini-ConX_008

18-Position Shielded Mini-Con-X Video

Cable Assembly Video

loading



Available Products
