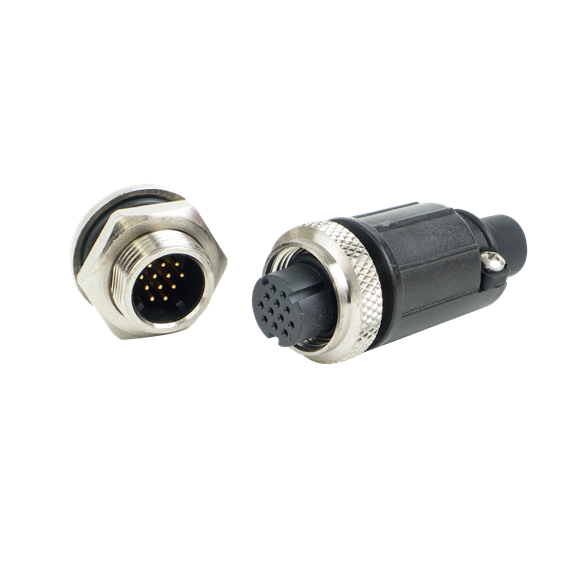

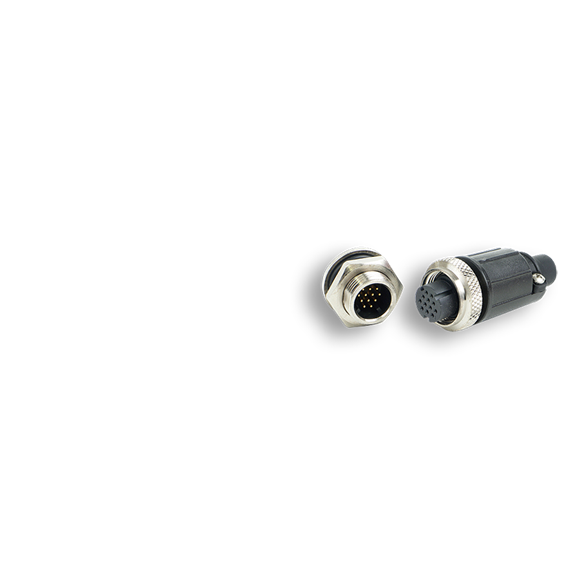

Shielded Multi-Con-X 0.995" OD

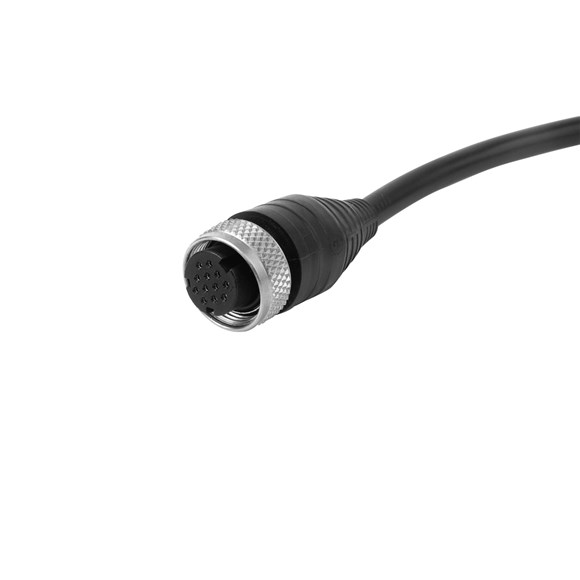

Rugged metal field installable, EMI/RFI Shielded Multi Con X connectors are available up to 6-#16 pins/sockets and 12-#20 pins/sockets in male panel and female cable mounts only. Meets IP66/IP68 when mated.
Key Features
![](/assets/1/6/icon3.jpg)
![icon_IP68_blue](/assets/1/6/MainFCKEditorDimension/icon_IP68_blue1.png)
The Shielded Multi-Con-X series is sealed to IP68 when mated for harsh environment durability
![](/assets/1/6/icon3.jpg)
![icon_360_blue](/assets/1/6/MainFCKEditorDimension/icon_360_blue.png)
A copper alloy housing with non-magnetic EN plating and the included conducting tape provide effective 360 shielding
![](/assets/1/6/icon3.jpg)
![icon_madeinUSA_blue](/assets/1/6/MainFCKEditorDimension/icon_madeinUSA_blue.png)
Made in USA to the high standards that have made Conxall the leading name in harsh environment connectors
Configuration
-
Product Line:
Multi-Con-X
-
Insert Material:
F1 Rated UV Resistance
Mechanical
-
Coupling Locking Style:
Threaded
Environmental
Compliance
-
RoHS Compliant:
Compliant
-
REACH Compliant:
Compliant
-
Brand:
Conxall
-
IP Rating:
IP67
IP68

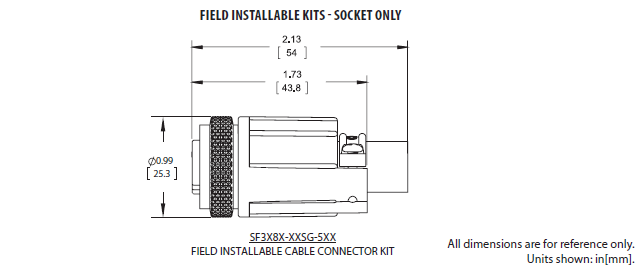

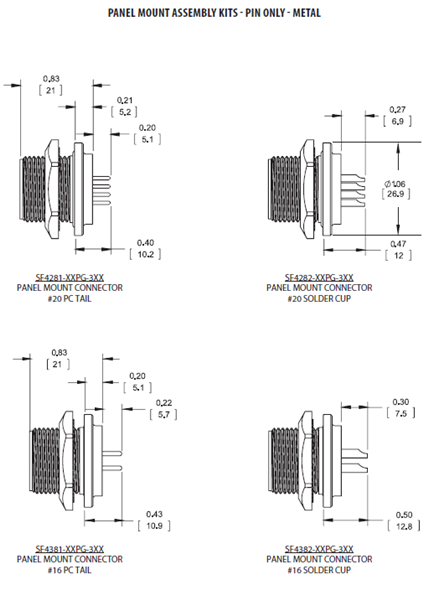

Dimensional
Enlarge
![Screenshot_(73)](/assets/1/6/MainFCKEditorDimension/Screenshot_(73).png)
![Screenshot_(74)](/assets/1/6/Screenshot_(74).png)
![Screenshot_(76)](/assets/1/6/Screenshot_(76).png)
![Screenshot_(75)](/assets/1/6/Screenshot_(75).png)
