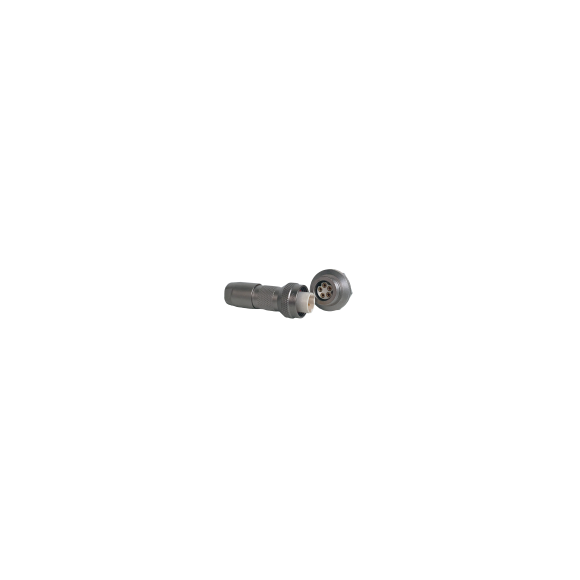

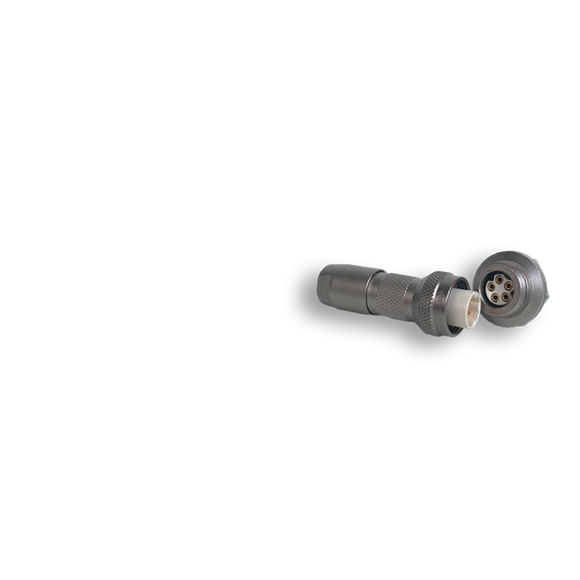

TS Series Dura-Twist Threaded Connectors
Extremely durable, sealed threaded connectors, made by Switchcraft in the USA. TS Series Dura-Twist Connectors are made from nickel plated brass with a medical technology grade plastic insulator and gold plated contacts. They are sealed to IP68 and IP69K, autoclaveable, and rated for at least 5,000 insertion/ withdrawal cycles. Althought they are less than 1/2" in diameter, they can be ordered with up to 9 contacts. (2 thru 5 #20 contacts or 6 thru 9 #26 contacts) Their unique contacts can be either soldered or crimped for maximum flexibility and easy installation. Factory overmolded cables are also available.
Key Features
The threaded locking mechanism is built for secure and easy connection
They are sealed to IP68 and IP69K autoclaveable, and rated for at least 5,000 insertion/ withdrawal cycles
The TS2 Series is made in the USA to the highest quality standards with premium materials
Configuration
-
Product Line:
Dura-Twist
-
Contact Plating:
Gold
-
Color:
Nickel
-
Locking:
Locking
-
Sealed:
Sealed
-
Insert Material:
Medical Technology LCP
Mechanical
-
Coupling Locking Style:
Threaded
Environmental
Compliance
-
RoHS Compliant:
Compliant
-
REACH Compliant:
Compliant
-
Brand:
Switchcraft
-
IP65:
1
-
IP66:
1
-
IP67:
1
-
IP68:
1
-
IP69K:
1
Dimensional
